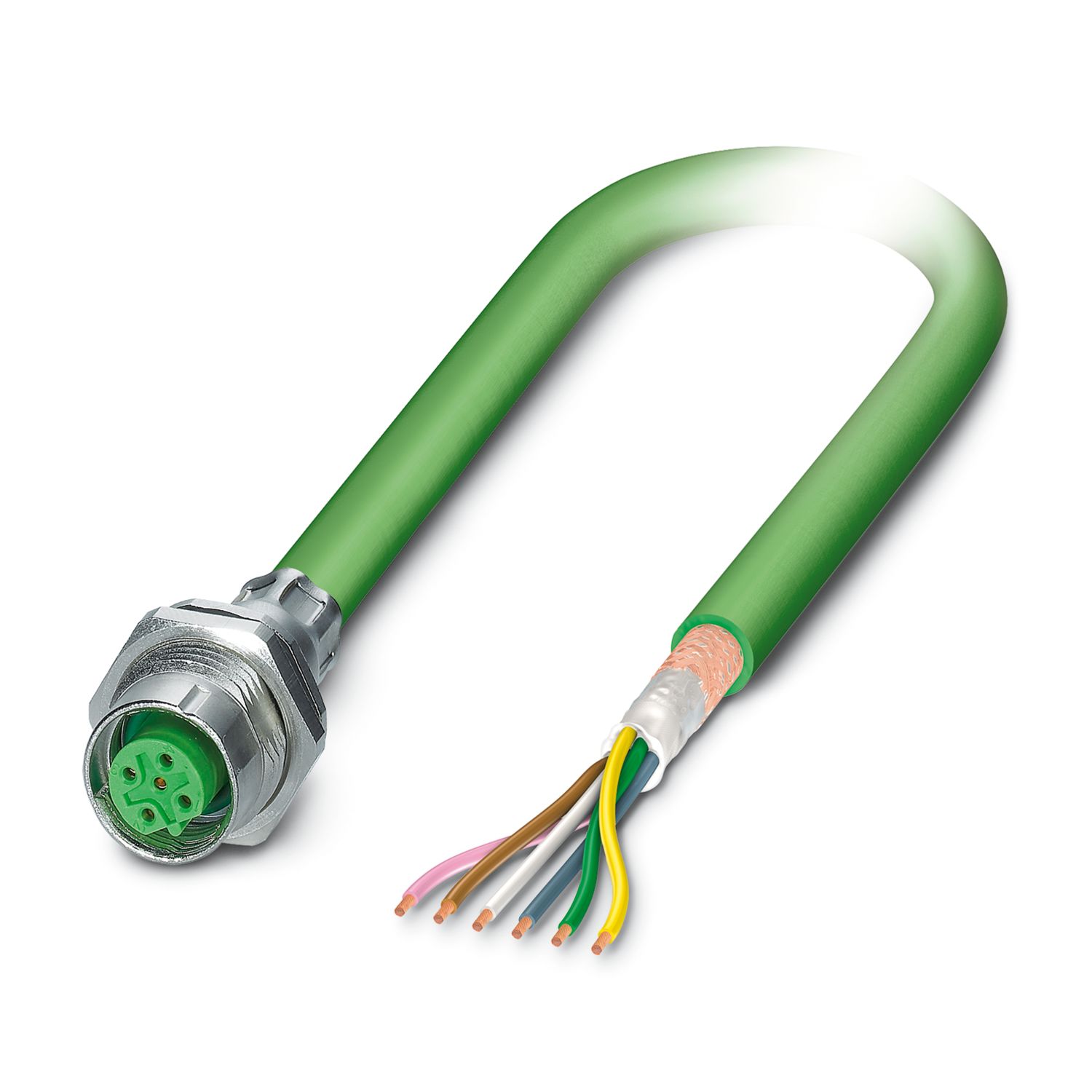

Phoenix Contact 1534562

1534562 Phoenix Contact
Phoenix Contact

Product Information

American Wire Gauge:
24 AWG
Current Rating:
4 A
Oil Resistant:
Yes
Number of Cores:
5
Outer Diameter:
8mm
Sheath Material:
PUR
Cable Shape:
Twisted Pair
IP Rating:
IP67
Voltage Rating:
60 V
Minimum Bend Radius:
60 mm (Fixed), 120 mm (Movable)
Connector 1 Gender:
Female
Length:
2m
Mounting Type:
Panel Mount
Conductor Material:
Bare Cu litz wires
Series:
SACCBP-M12FSB
Connector 1 Housing Gender:
Female
Connector 1 Number of Contacts:
5
Sheath Colour:
Green
Cross Sectional Area:
0.22 mm²
Connector 1:
M12
Insulation Material:
PE
1st Connector Orientation:
B
2nd Connector Mounting Type:
-
HTSUS:
8544.42.9090
RoHS Status:
RoHS Compliant
Cable Material:
Polyurethane (PUR)
Usage:
Industrial Environments
Shielding:
Shielded
1st Connector Number of Positions Loaded:
All
1st Connector Shell Size - Insert:
M12
2nd Connector Type:
Wire Leads
Assembly Configuration:
Standard
2nd Connector Number of Positions:
-
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
6.56' (2.00m)
Ingress Protection:
IP67 - Dust Tight, Waterproof
standardLeadTime:
14 Weeks
1st Connector Type:
Plug
2nd Connector Shell Size - Insert:
-
1st Connector Number of Positions:
5
1st Connector Gender:
Female Sockets
Color:
Green
Series:
-
2nd Connector Orientation:
-
Cable Type:
Round
2nd Connector Number of Positions Loaded:
-
2nd Connector Gender:
-
1st Connector Mounting Type:
Panel Mount
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 1534562. Features 24 awg - American Wire Gauge. The product has a current rating of 4 a. Additionally, it is oil resistant yes . The product consists of 5 cores. Its outer diameter is 8mm. The sheath is constructed from durable and adorable pur material. Moreover, this cable has a twisted pair shape. It is IP rated with ip67. Moreover, the product has a nominal 60 v voltage rating. It bears 60 mm (fixed), 120 mm (movable) of minimum bend radius. This connector 1 is a female. Its accurate length is 2m. The product is available in panel mount configuration. The conductor is made from bare cu litz wires material. The product saccbp-m12fsb, is a highly preferred choice for users. On the other hand, the gender of connector 1's housing is female. There are 5 contacts on connector 1. The sheath has an adorable green colour. The product has 0.22 mm² cross section area. Connector 1 is m12. It has a robust pe insulation material. This connector has a b orientation. It is assigned with possible HTSUS value of 8544.42.9090. The product is rohs compliant. The cable is constructed from highly durable polyurethane (pur) materials. The product's typical Applications include uses in industrial environments. Furthermore, the product is shielded with shielded. While the loaded positions on first connector are all. The size of the first connector's shell - insert is m12. The second connector is the wire leads. The product is designed in a standard assembly configuration. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 6.56' (2.00m). It is IP rated with ip67 - dust tight, waterproof. It has a long 14 weeks standard lead time. plug is the first connector. The first connector contains 5 positions. The first connectors are female sockets. It has a classic green colour. It is a typical round cable. The first connector is configured with a panel mount mounting type. The product is designated with the ear99 code number.
