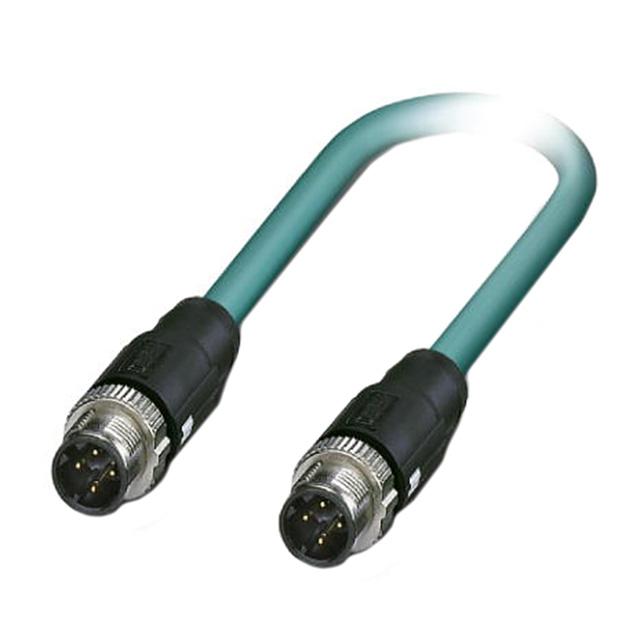

Phoenix Contact 1407376

1407376 Phoenix Contact
1407376
Phoenix Contact

Product Information

American Wire Gauge:
26 AWG
Current Rating:
1 A
Terminated/Unterminated:
Terminated
Outer Sheath Material:
PUR
Outer Diameter:
6.4mm
Cable Shape:
Twisted Pair
IP Rating:
IP67
Shielded/Unshielded:
Shielded
Voltage Rating:
48, 60 V
Connector 1 Orientation:
Straight
Fire Behaviour:
Halogen Free
Connector 1 Gender:
Male
Length:
1m
Connector 2 Orientation:
Straight
Connector 1:
M12
Connector 2 Gender:
Male
Connector 2 Number of Contacts:
4
Series:
NBC
Connector 1 Number of Contacts:
4
Coding:
D
Sheath Colour:
Blue
Cross Sectional Area:
0.14 mm²
Connector 2:
M12
LAN Category:
Cat5
1st Connector Orientation:
D
2nd Connector Mounting Type:
Free Hanging (In-Line)
HTSUS:
8544.42.2000
RoHS Status:
ROHS3 Compliant
Cable Material:
Polyurethane (PUR)
Usage:
Cat5, Industrial Environments
Shielding:
Shielded
1st Connector Number of Positions Loaded:
All
1st Connector Shell Size - Insert:
M12
REACH Status:
REACH Affected
edacadModel:
1407376 Models
2nd Connector Type:
Receptacle
edacadModelUrl:
/en/models/4450093
Assembly Configuration:
Standard
2nd Connector Number of Positions:
4 (Data)
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
3.28' (1.00m)
1st Connector Gender:
Male Pins
standardLeadTime:
8 Weeks
1st Connector Type:
Receptacle
2nd Connector Shell Size - Insert:
M12
1st Connector Number of Positions:
4 (Data)
Ingress Protection:
IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Color:
Blue
Series:
-
2nd Connector Orientation:
D
Cable Type:
Round
2nd Connector Number of Positions Loaded:
All
2nd Connector Gender:
Male Pins
1st Connector Mounting Type:
Free Hanging (In-Line)
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 1407376. Features 26 awg - American Wire Gauge. The product has a current rating of 1 a. Termination Options -terminated. Whereas the outer sheath is manufactured from pur material. Its outer diameter is 6.4mm. Moreover, this cable has a twisted pair shape. It is IP rated with ip67. Moreover, the product is shielded . Moreover, the product has a nominal 48, 60 v voltage rating. The connector 1 has a straight orientation. The product has a halogen free fire behaviour. This connector 1 is a male. Its accurate length is 1m. In addition, its connector 2 orientation is straight . Connector 1 is m12. Connector 2 is a male connector. On the other hand, the connector 2 has 4 contacts. The product nbc, is a highly preferred choice for users. There are 4 contacts on connector 1. The product is coded with d. The sheath has an adorable blue colour. The product has 0.14 mm² cross section area. While the Connector 2 is m12. This cat5 is popular among global users for its versatile and effective applications. This connector has a d orientation. The second integral connector has a free hanging (in-line) mounting configuration. It is assigned with possible HTSUS value of 8544.42.2000. The product is rohs3 compliant. The cable is constructed from highly durable polyurethane (pur) materials. The product's typical Applications include uses in cat5, industrial environments. Furthermore, the product is shielded with shielded. While the loaded positions on first connector are all. The size of the first connector's shell - insert is m12. In addition, it is reach affected. The second connector is the receptacle. The product is designed in a standard assembly configuration. The number of positions on the second connector are 4 (data). It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 3.28' (1.00m). The first connectors are male pins. It has a long 8 weeks standard lead time. receptacle is the first connector. The shell size of the second connector is m12. The first connector contains 4 (data) positions. It is IP rated with ip65/ip67 - dust tight, water resistant, waterproof. It has a classic blue colour. In addition, second connectors are available in d orientation. It is a typical round cable. While the loaded positions on the second connector are all. Second connectors come as male pins. The first connector is configured with a free hanging (in-line) mounting type. The product is designated with the ear99 code number.

pdf icon
Datasheet - 1407376(Technical Reference)
