CAD Drawing:
3D CAD Model
1st Connector Orientation:
A
2nd Connector Mounting Type:
-
HTSUS:
8544.42.9090
RoHS Status:
RoHS Compliant
Cable Material:
Polyvinyl Chloride (PVC)
Usage:
Industrial Environments
Shielding:
Unshielded
1st Connector Number of Positions Loaded:
All
1st Connector Shell Size - Insert:
7/8"
2nd Connector Type:
Wire Leads
Assembly Configuration:
Standard
2nd Connector Number of Positions:
-
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
1.64' (500.00mm)
Ingress Protection:
IP67 - Dust Tight, Waterproof
1st Connector Type:
Plug
2nd Connector Shell Size - Insert:
-
1st Connector Number of Positions:
3
1st Connector Gender:
Female Sockets
Color:
Multiple
Series:
-
2nd Connector Orientation:
-
Cable Type:
Individual
2nd Connector Number of Positions Loaded:
-
2nd Connector Gender:
-
1st Connector Mounting Type:
Panel Mount
ECCN:
EAR99

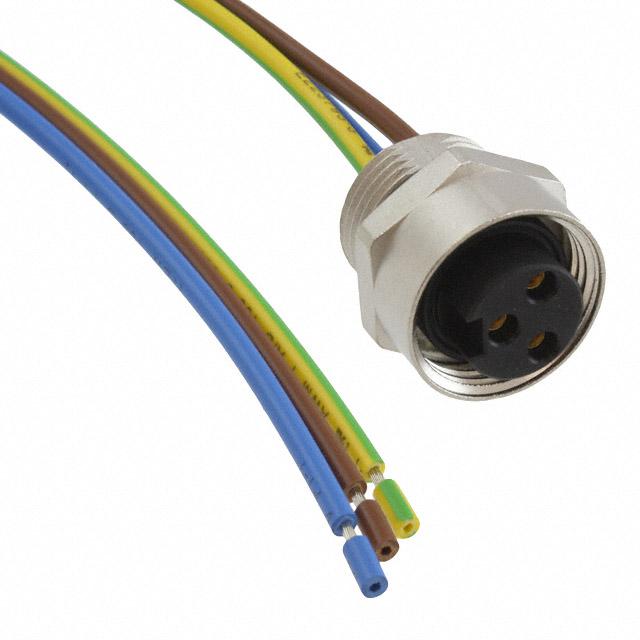

This is manufactured by Phoenix Contact. The manufacturer part number is 1521407. It has 3d cad model CAD drawing . This connector has a a orientation. It is assigned with possible HTSUS value of 8544.42.9090. The product is rohs compliant. The cable is constructed from highly durable polyvinyl chloride (pvc) materials. The product's typical Applications include uses in industrial environments. Furthermore, the product is shielded with unshielded. While the loaded positions on first connector are all. The size of the first connector's shell - insert is 7/8". The second connector is the wire leads. The product is designed in a standard assembly configuration. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 1.64' (500.00mm). It is IP rated with ip67 - dust tight, waterproof. plug is the first connector. The first connector contains 3 positions. The first connectors are female sockets. It has a classic multiple colour. It is a typical individual cable. The first connector is configured with a panel mount mounting type. The product is designated with the ear99 code number.
