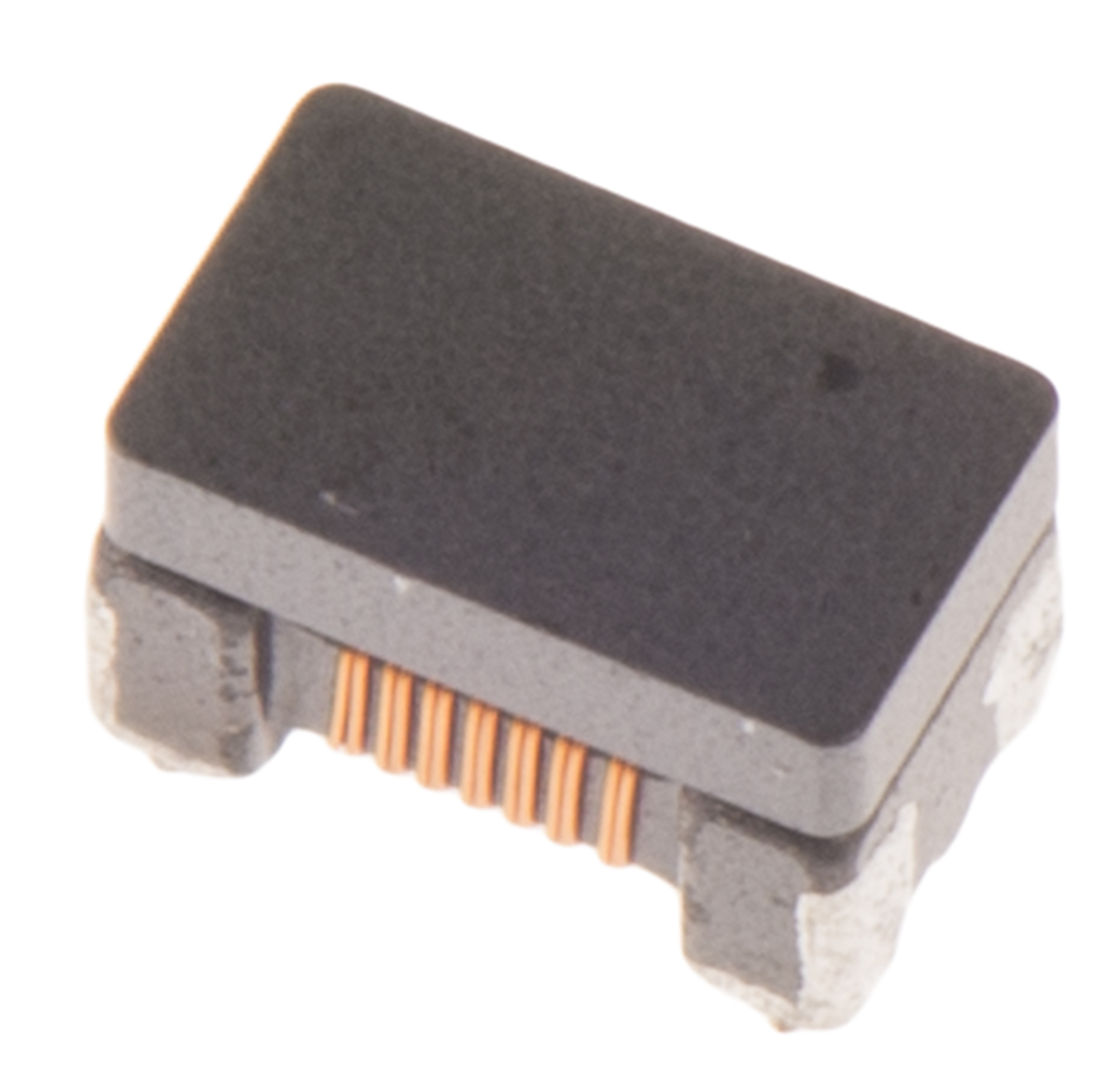

75Ω TDK 50 → 1200MHz Surface Mount Balun Transformer

ATB2012-75011-T 75Ω TDK 50 → 1200MHz Surface Mount Balun Transformer
ATB2012-75011-T
TDK

Product Information

Dimensions:
2 x 1.2 x 1.2mm
Mounting Type:
Surface Mount
Minimum Frequency:
50MHz
Maximum Insertion Loss:
1.2dB
Maximum Operating Temperature:
+85°C
Height:
1.2mm
Width:
1.2mm
Length:
2mm
Maximum Frequency:
1.2GHz
Minimum Operating Temperature:
-40°C
Unbalance Impedance:
75Ω
Pin Count:
4
Balance Impedance:
75Ω
RoHs Compliant
Checking for live stock

This is 75Ω 50 → 1200MHz Surface Mount Balun Transformer manufactured by TDK. The manufacturer part number is ATB2012-75011-T. The given dimensions of the product include 2 x 1.2 x 1.2mm. The product is available in surface mount configuration. It has a minimum 50mhz frequency . It has a maximum 1.2db insertion loss . It has a maximum operating temperature of +85°c. In addition, the height is 1.2mm. Furthermore, the product is 1.2mm wide. Its accurate length is 2mm. It features 1.2ghz of maximum frequency. Whereas, the minimum operating temperature of the product is -40°c. It has a 75ω unbalanced impedance . It contains 4 pins. With 75ω of balance impedance .

pdf icon
ATB Series Datasheet_EN(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search ATB2012-75011-T on website for other similar products.
We accept all major payment methods for all products including ET14002144. Please check your shopping cart at the time of order.
You can order TDK brand products with ATB2012-75011-T directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Chip Baluns category are shipped in lowest possible time.
You will get a confirmation email regarding your order of 75Ω TDK 50 → 1200MHz Surface Mount Balun Transformer. You can also check on our website or by contacting our customer support team for further order details on 75Ω TDK 50 → 1200MHz Surface Mount Balun Transformer.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14002144 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TDK" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14002144.
Yes. We ship ATB2012-75011-T Internationally to many countries around the world.
