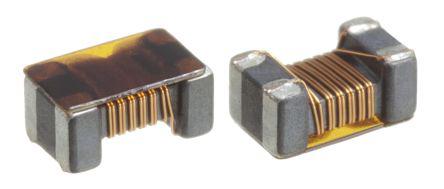

50Ω TDK 40 → 860MHz Surface Mount Chip Balun

ATB2012-50011-T 50Ω TDK 40 → 860MHz Surface Mount Chip Balun
TDK

Product Information

Dimensions:
2 x 1.2 x 1.2mm
Mounting Type:
Surface Mount
Minimum Frequency:
40MHz
Maximum Insertion Loss:
2.5dB
Maximum Operating Temperature:
+85°C
Height:
1.2mm
Width:
1.2mm
Length:
2mm
Maximum Frequency:
860MHz
Minimum Operating Temperature:
-40°C
Unbalance Impedance:
50Ω
Pin Count:
4
Balance Impedance:
50Ω
RoHs Compliant
Checking for live stock

This is 50Ω 40 → 860MHz Surface Mount Chip Balun manufactured by TDK. The manufacturer part number is ATB2012-50011-T. The given dimensions of the product include 2 x 1.2 x 1.2mm. The product is available in surface mount configuration. It has a minimum 40mhz frequency . It has a maximum 2.5db insertion loss . It has a maximum operating temperature of +85°c. In addition, the height is 1.2mm. Furthermore, the product is 1.2mm wide. Its accurate length is 2mm. It features 860mhz of maximum frequency. Whereas, the minimum operating temperature of the product is -40°c. It has a 50ω unbalanced impedance . It contains 4 pins. With 50ω of balance impedance .

pdf icon
ATB Series Datasheet_EN(Technical Reference)
