Number of Inputs:
3
Power Source:
Mains
Best Voltage Measurement Accuracy:
0.1 %, 0.2 %
Width:
79mm
Maximum Current Measurement:
50mA
Model Number p:
SM503FCB
Maximum Operating Voltage:
265V ac
Minimum Operating Voltage:
85V ac
Number of Outputs:
4

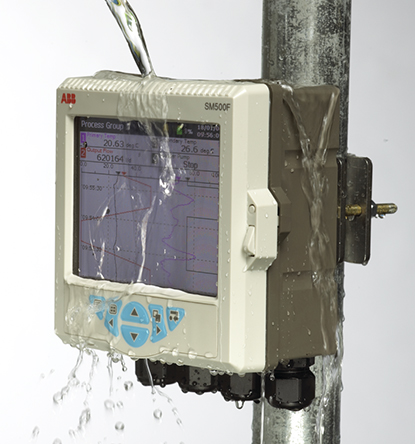

IP Rating:
IP66

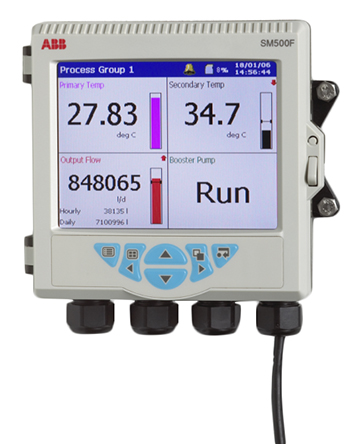

Chart Type:
Videographic
Best Current Measurement Accuracy:
0.2 %
Maximum Voltage Measurement:
25 V, 150 mV
Length:
144mm
Maximum Resistance Measurement:
550 ￫ 10000Ω
Best Temperature Measurement Accuracy:
0.1 %
Weight:
1kg
Best Resistance Measurement Accuracy:
0.1 %
Height:
144mm
Parameter Measured:
Current, Resistance, Temperature, Voltage
Maximum Temperature Measurement:
+1300 (K) °C, +1300 (N) °C, +1700 (R) °C, +1700 (S) °C, +1800 (B) °C, +300 (T) °C, +900 (E) °C, +900 (J) °C, +900 (L) °C
Recorder Input Type:
Digital, mA, mV, Resistance, RTD, Thermocouple, Voltage
