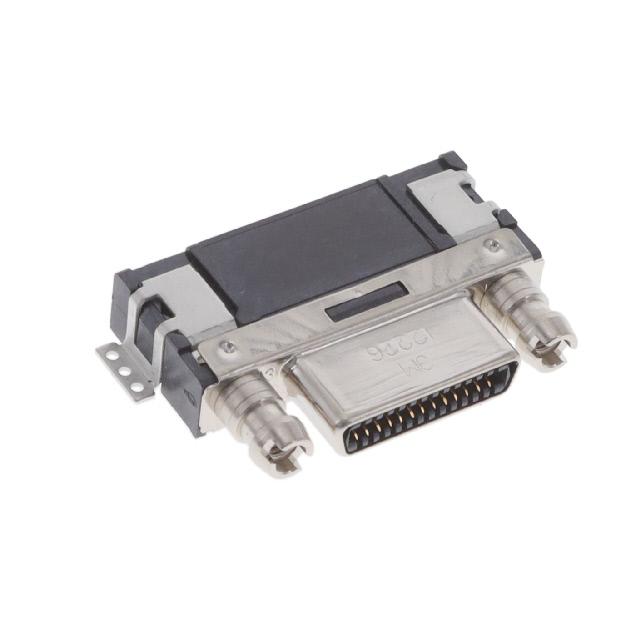

3M 12226-8250-00FR

12226-8250-00FR 3M
12226-8250-00FR
12226-8250-00FR
ET11387908
3M

Product Information

Series:
SDR 122
Current Rating:
500mA
Dimensions:
24.8 x 16.7 x 5mm
Mounting Type:
Surface Mount
Gender:
Female
Body Orientation:
Right Angle
Length:
24.8mm
Width:
16.7mm
Depth:
5mm
Contact Plating:
Gold over Nickel
Pitch:
0.8mm
Number of Contacts:
26
Maximum Operating Temperature:
+70°C
Minimum Operating Temperature:
-40°C
Contact Material:
Copper Alloy
Flange Feature:
Mating Side (M2)
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Connector Style:
Outer Shroud Contacts
Contact Finish Thickness:
30.0µin (0.76µm)
Type:
-
Number of Positions:
26
title:
12226-8250-00FR
REACH Status:
REACH Affected
edacadModel:
12226-8250-00FR Models
Number of Rows:
2
edacadModelUrl:
/en/models/1092161
Manufacturer:
3M
Connector Type:
Receptacle
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
23 Weeks
Features:
Board Guide, Shielded
Mounting Type:
Surface Mount, Right Angle
Series:
122, Shrunk D Ribbon (SDR)
Packaging:
Tray
Base Product Number:
12226
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by 3M. The manufacturer part number is 12226-8250-00FR. The product sdr 122, is a highly preferred choice for users. The product has a current rating of 500ma. The given dimensions of the product include 24.8 x 16.7 x 5mm. The product is available in surface mount configuration. In addition, female is the available "Gender" of the product. It has right angle body orientation. Its accurate length is 24.8mm. Furthermore, the product is 16.7mm wide. The product comes in 5mm depth. The high-quality gold over nickel is used as contact plating material. Moreover, the product is 0.8mm. The product contains 26 contacts. It has a maximum operating temperature of +70°c. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy copper alloy materials. Furthermore, mating side (m2) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. It comes in outer shroud contacts connector style. It has 30.0µin (0.76µm) of contact finishing thickness. The product carries possible position value of 26. In addition, it is reach affected. It comes in 2 of rows. The 3m's product offers user-desired applications. receptacle Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 23 weeks standard lead time. The splendid features of the product include board guide, shielded. The product is available in surface mount, right angle configuration. The product 122, shrunk d ribbon (sdr), is a highly preferred choice for users. In addition, tray is the available packaging type of the product. Moreover, it corresponds to 12226, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Shrunk Delta Ribbon (SDR) Right Angle Shielded Receptacle Customer Drawing(Technical Reference)
pdf icon
122xx-82x0-00xx Drawing(Datasheets)
