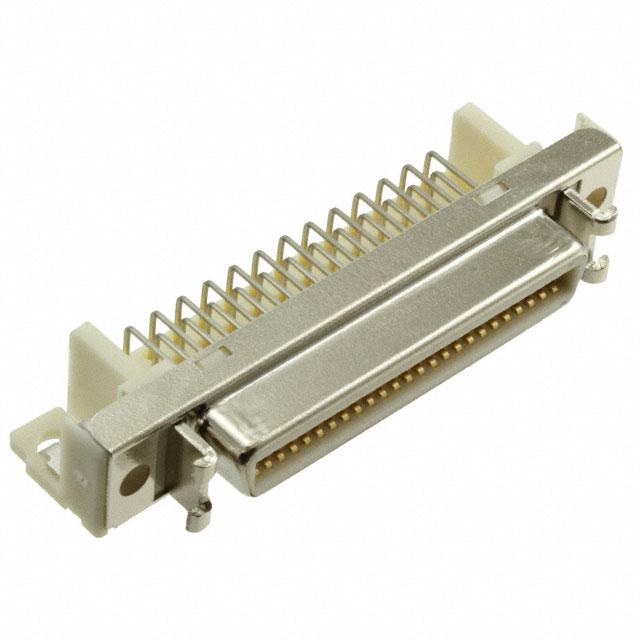

3M 10250-55F3PC

10250-55F3PC 3M
10250-55F3PC
10250-55F3PC
3M

Product Information

Housing Material:
Glass Fibre Reinforced PET
Series:
102
Current Rating:
1A
Minimum Operating Temperature:
-55°C
Mounting Type:
Through Hole
Gender:
Female
Body Orientation:
Right Angle
Termination Method:
Solder
Length:
52.4mm
Latch Type:
Quick Latch
Width:
16.7mm
Depth:
9.4mm
Contact Plating:
Gold over Nickel
Pitch:
1.27mm
Number of Contacts:
50
Maximum Operating Temperature:
+105°C
Contact Material:
Copper Alloy
Flange Feature:
Housing/Shell (M2.6)
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Connector Style:
Outer Shroud Contacts
Contact Finish Thickness:
30.0µin (0.76µm)
Type:
-
Number of Positions:
50
REACH Status:
REACH Unaffected
edacadModel:
10250-55F3PC Models
Number of Rows:
2
edacadModelUrl:
/en/models/1091815
Package:
Box
Connector Type:
Receptacle
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
28 Weeks
Features:
Board Lock, Shielded
Mounting Type:
Panel Mount, Through Hole, Right Angle
Series:
102, Mini D Ribbon (MDR)
Base Product Number:
10250
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by 3M. The manufacturer part number is 10250-55F3PC. The product also features robust glass fibre reinforced pet housing material. The product 102, is a highly preferred choice for users. The product has a current rating of 1a. Whereas, the minimum operating temperature of the product is -55°c. The product is available in through hole configuration. In addition, female is the available "Gender" of the product. It has right angle body orientation. It allows solder termination method. Its accurate length is 52.4mm. In addition, it has a quick latch type latch . Furthermore, the product is 16.7mm wide. The product comes in 9.4mm depth. The high-quality gold over nickel is used as contact plating material. Moreover, the product is 1.27mm. The product contains 50 contacts. It has a maximum operating temperature of +105°c. The product is made from sturdy copper alloy materials. Furthermore, housing/shell (m2.6) is the Flange Feature of the product. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. It comes in outer shroud contacts connector style. It has 30.0µin (0.76µm) of contact finishing thickness. The product carries possible position value of 50. In addition, it is reach unaffected. It comes in 2 of rows. It is shipped in box package . receptacle Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 28 weeks standard lead time. The splendid features of the product include board lock, shielded. The product is available in panel mount, through hole, right angle configuration. The product 102, mini d ribbon (mdr), is a highly preferred choice for users. Moreover, it corresponds to 10250, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Interconnect Catalog(Datasheets)
pdf icon
MDR Series Qualification Report(Datasheets)
pdf icon
MDR Selection Guide(Other Related Documents)
