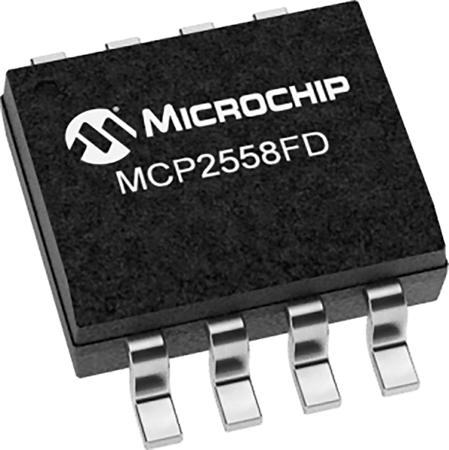

Microchip Technology MCP2558FD-H/SN, CAN Transceiver 8Mbit/s 1-Channel CAN, 8-Pin SOIC

MCP2558FD-H-SN Microchip Technology MCP2558FD-H/SN, CAN Transceiver 8Mbit/s 1-Channel CAN, 8-Pin SOIC
Microchip

Product Information

Automotive Standard:
AEC-Q100
Dimensions:
4.9 x 3.9 x 1.5mm
Mounting Type:
Surface Mount
Number of Transceivers:
1
Minimum Operating Supply Voltage:
4.5 V
Maximum Supply Current:
70 mA
Height:
1.5mm
Width:
3.9mm
Length:
4.9mm
Package Type:
SOIC
Minimum Operating Temperature:
-40 °C
IC Type:
CAN Transceiver IC
Maximum Operating Supply Voltage:
5.5 V
Standard Supported:
CAN
Maximum Operating Temperature:
+150 °C
Pin Count:
8
Maximum Data Rate:
8Mbps
RoHs Compliant
Checking for live stock

This is Technology CAN Transceiver 8Mbit/s 1-Channel CAN 8-Pin SOIC manufactured by Microchip. The manufacturer part number is MCP2558FD-H/SN. The product complies with automotive standard - aec-q100. The given dimensions of the product include 4.9 x 3.9 x 1.5mm. The product is available in surface mount configuration. It contains 1 transceivers . While its minimum operating supply voltage is 4.5 v. Moreover, it has a maximum 70 ma supply current . In addition, the height is 1.5mm. Furthermore, the product is 3.9mm wide. Its accurate length is 4.9mm. The package is a sort of soic. Whereas, the minimum operating temperature of the product is -40 °c. Additionally, it includes can transceiver ic type IC . It has 5.5 v maximum operating supply voltage. It is can standard supported . It has a maximum operating temperature of +150 °c. It contains 8 pins. Furthermore, it has a maximum data rate of 8mbps .
