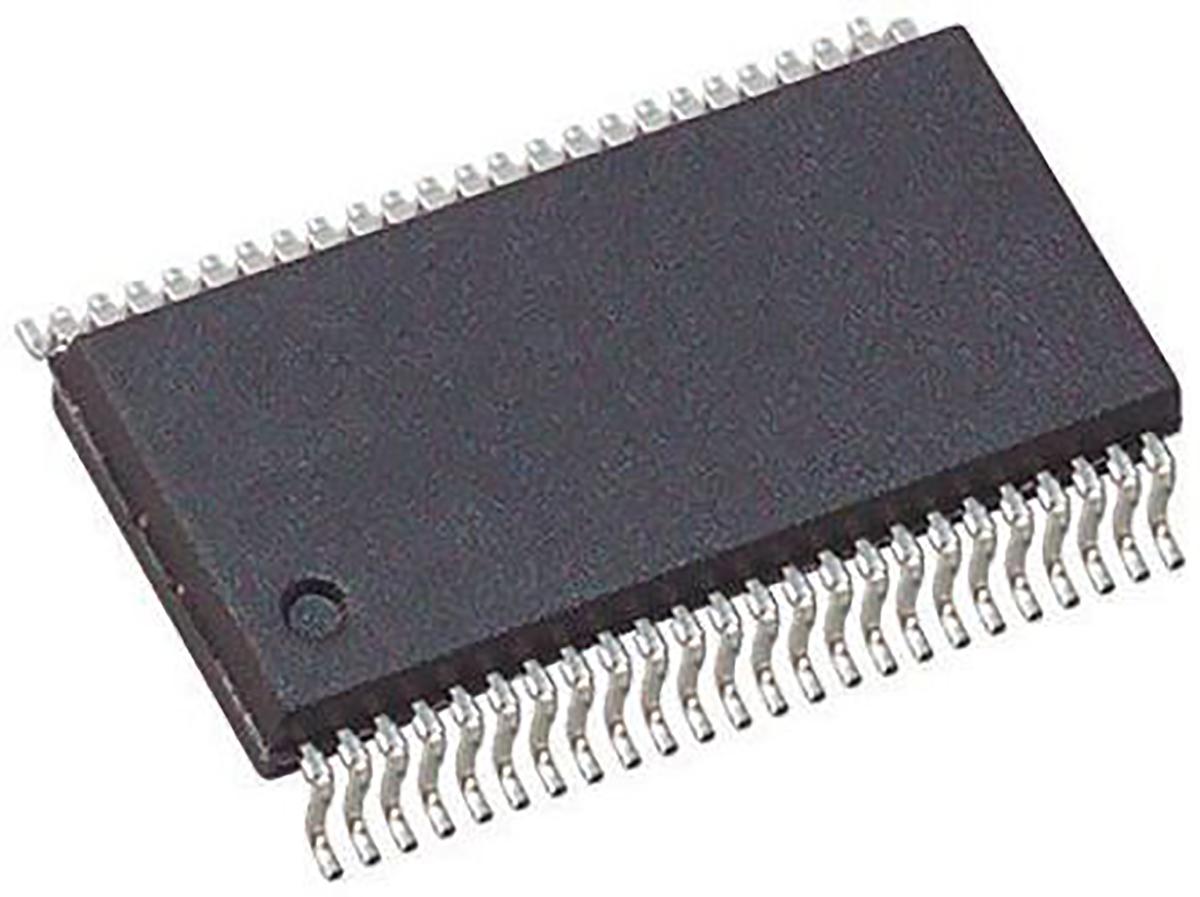

Nexperia 74LVCH16245ADL,112, Dual, Bus Transceiver, 16-Bit Non-Inverting LVTTL, 48-Pin SSOP

74LVCH16245ADL-112 Nexperia 74LVCH16245ADL,112, Dual, Bus Transceiver, 16-Bit Non-Inverting LVTTL, 48-Pin SSOP
Nexperia

Product Information

Polarity:
Non-Inverting
Dimensions:
16 x 7.6 x 2.35mm
Minimum Operating Supply Voltage:
1.2 V
Logic Family:
LVC
Width:
7.6mm
Input Level:
LVTTL
Maximum Low Level Output Current:
24mA
Maximum High Level Output Current:
-24mA
Maximum Propagation Delay Time @ Maximum CL:
2.2 ns @ 3.3 V
Number of Channels per Chip:
16
Package Type:
SSOP
Number of Elements per Chip:
2
Maximum Operating Temperature:
+125 °C
Output Level:
LVTTL
Length:
16mm
Pin Count:
48
Maximum Operating Supply Voltage:
3.6 V
Mounting Type:
Surface Mount
Logic Function:
Bus Transceiver
Height:
2.35mm
Minimum Operating Temperature:
-40 °C
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is Dual Bus Transceiver 16-Bit Non-Inverting LVTTL 48-Pin SSOP manufactured by Nexperia. The manufacturer part number is 74LVCH16245ADL,112. While providing non-inverting polarity. The given dimensions of the product include 16 x 7.6 x 2.35mm. While its minimum operating supply voltage is 1.2 v. The logic family is lvc. Furthermore, the product is 7.6mm wide. Additionally, it has a standard lvttl input level . On the other hand, it is featured with 24ma of max. low level output current. While a -24ma of maximum high level output current. It provides up to 2.2 ns @ 3.3 v maximum propagation delay time. It comprises 16 channels per chip. The package is a sort of ssop. It consists of 2 elements per chip. It has a maximum operating temperature of +125 °c. Its output level is lvttl . Its accurate length is 16mm. It contains 48 pins. It has 3.6 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes bus transceiver. In addition, the height is 2.35mm. Whereas, the minimum operating temperature of the product is -40 °c. Features 50pf of propagation delay test condition.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
74LVC16245A 74LVCH16245A, 16-Bit Bus Transceiver with Direction Pin 5V Tolerant 3-State(Technical Reference)
