Polarity:
Non-Inverting
Dimensions:
7.9 x 4.5 x 1.05mm
Minimum Operating Supply Voltage:
2.3 V, 3 V
Logic Family:
LVX
Width:
4.5mm
Input Level:
TTL
Maximum Low Level Output Current:
24mA
Maximum High Level Output Current:
-24mA
Maximum Propagation Delay Time @ Maximum CL:
9 ns@ 50 pF
Number of Channels per Chip:
16

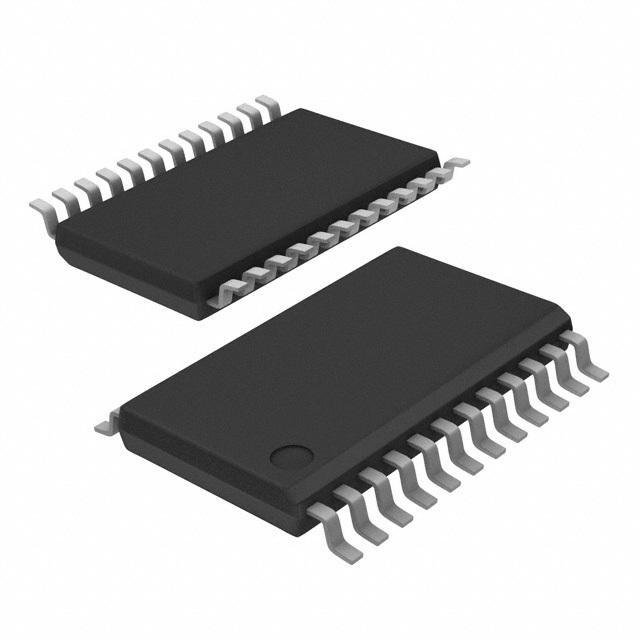

Package Type:
TSSOP
Number of Elements per Chip:
2
Maximum Operating Temperature:
+85 °C
Output Level:
3-State
Length:
7.9mm
Pin Count:
24
Maximum Operating Supply Voltage:
3.6 V, 5.5 V
Mounting Type:
Surface Mount
Logic Function:
Bus Transceiver
Height:
1.05mm
Minimum Operating Temperature:
-40 °C
Propagation Delay Test Condition:
50pF
Channels per Circuit:
8
Translator Type:
Voltage Level
Mounting Type:
Surface Mount
Series:
74LVXC
Standard Package:
62
Supplier Device Package:
24-TSSOP
Output Type:
Tri-State, Non-Inverted
Channel Type:
Bidirectional
Packaging:
Tube
Operating Temperature:
-40°C ~ 85°C (TA)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Voltage - VCCB:
3V ~ 5.5V
Voltage - VCCA:
2.3V ~ 3.6V
Package / Case:
24-TSSOP (0.173", 4.40mm Width)
Manufacturer Standard Lead Time:
4 Weeks
Number of Circuits:
1
Other Names:
MC74LVXC3245DTG-ND
MC74LVXC3245DTGOS
Manufacturer:
ON Semiconductor
