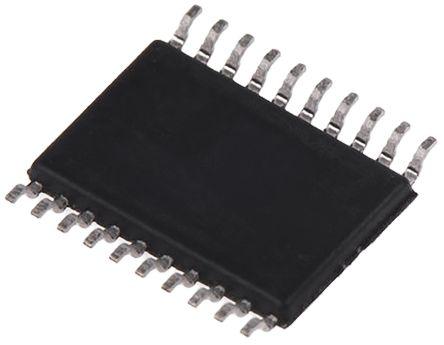

Toshiba TC7MPB9307FT(EL), Bus Switch, 8 x 1:1, 1.65 → 5 V, 2.3 → 5.5 V, 20-Pin TSSOP

TC7MPB9307FT-EL- Toshiba TC7MPB9307FT(EL), Bus Switch, 8 x 1:1, 1.65 → 5 V, 2.3 → 5.5 V, 20-Pin TSSOP
TC7MPB9307FT(EL)
Toshiba

Product Information

Dimensions:
6.5 x 4.4 x 1mm
Width:
4.4mm
Maximum Low Level Output Current:
64mA
Number of Inputs per Chip:
8
Maximum High Level Output Current:
-64mA
Maximum Propagation Delay Time @ Maximum CL:
2.2 ns@ 3.3 V
Minimum Operating Supply Voltage:
1.65 V, 2.3 V
Package Type:
TSSOP
Number of Elements per Chip:
1
Configuration:
8 x 1:1
Maximum Operating Temperature:
+85 °C
Maximum On Resistance:
16Ω
Length:
6.5mm
Pin Count:
20
Number of Outputs per Chip:
8
Maximum Operating Supply Voltage:
5 V, 5.5 V
Mounting Type:
Surface Mount
Height:
1mm
Minimum Operating Temperature:
-40 °C
Maximum Quiescent Current:
10µA
Propagation Delay Test Condition:
30pF
RoHs Compliant
Checking for live stock

This is Bus Switch 8 x 1:1 1.65 → 5 V 2.3 → 5.5 V 20-Pin TSSOP manufactured by Toshiba. The manufacturer part number is TC7MPB9307FT(EL). The given dimensions of the product include 6.5 x 4.4 x 1mm. Furthermore, the product is 4.4mm wide. On the other hand, it is featured with 64ma of max. low level output current. It contains 8 inputs per chip . While a -64ma of maximum high level output current. It provides up to 2.2 ns@ 3.3 v maximum propagation delay time. While its minimum operating supply voltage is 1.65 v, 2.3 v. The package is a sort of tssop. It consists of 1 elements per chip. The product is available in 8 x 1:1 configuration. It has a maximum operating temperature of +85 °c. Moreover, it has a 16ω maximum On resistance . Its accurate length is 6.5mm. It contains 20 pins. It includes 8 outputs per chip . It has 5 v, 5.5 v maximum operating supply voltage. The product is available in surface mount configuration. In addition, the height is 1mm. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum 10µa quiescent current . Features 30pf of propagation delay test condition.
