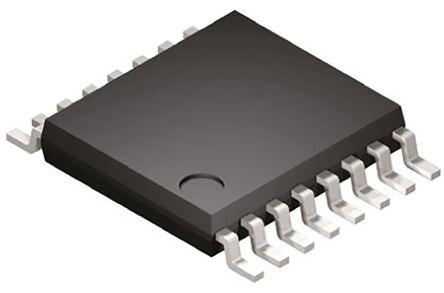

IDT IDT74CBTLV3257PGG, Bus Switch, 4 x 2:1, 2.3 → 3.6 V, 16-Pin TSSOP

IDT74CBTLV3257PGG IDT , Bus Switch, 4 x 2:1, 2.3 → 3.6 V, 16-Pin TSSOP
IDT74CBTLV3257PGG
IDT74CBTLV3257PGG
ET16929242
ET16929242
Bus Switches
Bus Switches
IDT

Product Information

Dimensions:
5 x 4.4 x 1mm
Logic Family:
CBT
Width:
4.4mm
Height:
1mm
Maximum Low Level Output Current:
128mA
Number of Inputs per Chip:
8
Maximum High Level Output Current:
-128mA
Maximum Propagation Delay Time @ Maximum CL:
0.25ns
Minimum Operating Supply Voltage:
2.3 V
Package Type:
TSSOP
Number of Elements per Chip:
1
Configuration:
4 x 2:1
Maximum Operating Temperature:
+85 °C
Maximum On Resistance:
40Ω
Length:
5mm
Pin Count:
16
Number of Outputs per Chip:
4
Maximum Operating Supply Voltage:
3.6 V
Mounting Type:
Surface Mount
Maximum Quiescent Current:
10µA
Minimum Operating Temperature:
-40 °C
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is 74CBTLV3257PGG Bus Switch 4 x 2:1 2.3 → 3.6 V 16-Pin TSSOP manufactured by IDT. The manufacturer part number is IDT74CBTLV3257PGG. The given dimensions of the product include 5 x 4.4 x 1mm. The logic family is cbt. Furthermore, the product is 4.4mm wide. In addition, the height is 1mm. On the other hand, it is featured with 128ma of max. low level output current. It contains 8 inputs per chip . While a -128ma of maximum high level output current. It provides up to 0.25ns maximum propagation delay time. While its minimum operating supply voltage is 2.3 v. The package is a sort of tssop. It consists of 1 elements per chip. The product is available in 4 x 2:1 configuration. It has a maximum operating temperature of +85 °c. Moreover, it has a 40ω maximum On resistance . Its accurate length is 5mm. It contains 16 pins. It includes 4 outputs per chip . It has 3.6 v maximum operating supply voltage. The product is available in surface mount configuration. It has a maximum 10µa quiescent current . Whereas, the minimum operating temperature of the product is -40 °c. Features 50pf of propagation delay test condition.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
Mux/Demux Bus Switch Quad 2:1 3.3V TSSOP(Technical Reference)
