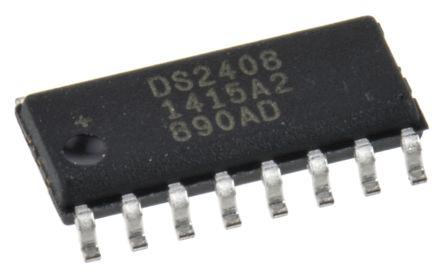

Maxim DS2408S+, Bus Switch, 1 x 1:1, 2.8 → 5.25 V, 16-Pin SOIC

DS2408S- Maxim DS2408S+, Bus Switch, 1 x 1:1, 2.8 → 5.25 V, 16-Pin SOIC
Maxim

Product Information

Maximum Low Level Output Current:
20mA
Dimensions:
10 x 4 x 1.5mm
Mounting Type:
Surface Mount
Maximum On Resistance:
100Ω
Maximum Quiescent Current:
1µA
Minimum Operating Supply Voltage:
2.8 V
Logic Family:
CB3Q
Height:
1.5mm
Width:
4mm
Length:
10mm
Package Type:
SOIC
Number of Elements per Chip:
8
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
5.25 V
Configuration:
1 x 1:1
Maximum Operating Temperature:
+85 °C
Pin Count:
16
Number of Outputs per Chip:
8
RoHs Compliant
Checking for live stock

This is Bus Switch 1 x 1:1 2.8 → 5.25 V 16-Pin SOIC manufactured by Maxim. The manufacturer part number is DS2408S+. On the other hand, it is featured with 20ma of max. low level output current. The given dimensions of the product include 10 x 4 x 1.5mm. The product is available in surface mount configuration. Moreover, it has a 100ω maximum On resistance . It has a maximum 1µa quiescent current . While its minimum operating supply voltage is 2.8 v. The logic family is cb3q. In addition, the height is 1.5mm. Furthermore, the product is 4mm wide. Its accurate length is 10mm. The package is a sort of soic. It consists of 8 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. It has 5.25 v maximum operating supply voltage. The product is available in 1 x 1:1 configuration. It has a maximum operating temperature of +85 °c. It contains 16 pins. It includes 8 outputs per chip .
