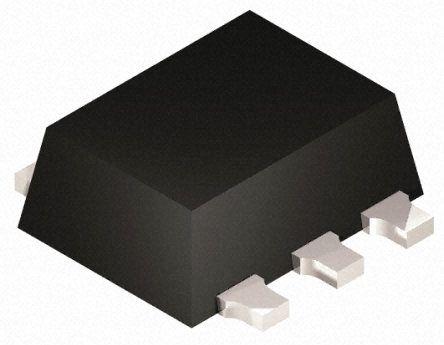

Toshiba TC7SG125FE(TE85L,F, Bus Buffer, 29.6 ns @ 1.3 V 8mA, 0.9 → 3.6 V, 5-Pin SON

TC7SG125FE-TE85L-F Toshiba TC7SG125FE(TE85L,F, Bus Buffer, 29.6 ns @ 1.3 V 8mA, 0.9 → 3.6 V, 5-Pin SON
Toshiba

Product Information

Maximum Low Level Output Current:
8mA
Dimensions:
1.6 x 1.2 x 0.55mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
29.6 ns @ 1.3 V
Propagation Delay Test Condition:
30pF
Minimum Operating Supply Voltage:
0.9 V
Height:
0.55mm
Width:
1.2mm
Length:
1.6mm
Package Type:
SON
Number of Elements per Chip:
1
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
3.6 V
Maximum Operating Temperature:
+85 °C
Pin Count:
5
Maximum High Level Output Current:
-8mA
RoHs Compliant
Checking for live stock

This is Bus Buffer 29.6 ns @ 1.3 V 8mA 0.9 → 3.6 V 5-Pin SON manufactured by Toshiba. The manufacturer part number is TC7SG125FE(TE85L,F. On the other hand, it is featured with 8ma of max. low level output current. The given dimensions of the product include 1.6 x 1.2 x 0.55mm. The product is available in surface mount configuration. It provides up to 29.6 ns @ 1.3 v maximum propagation delay time. Features 30pf of propagation delay test condition. While its minimum operating supply voltage is 0.9 v. In addition, the height is 0.55mm. Furthermore, the product is 1.2mm wide. Its accurate length is 1.6mm. The package is a sort of son. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. It has 3.6 v maximum operating supply voltage. It has a maximum operating temperature of +85 °c. It contains 5 pins. While a -8ma of maximum high level output current.

pdf icon
Logic,L-MOS,LVP Series,ESV(Technical Reference)
