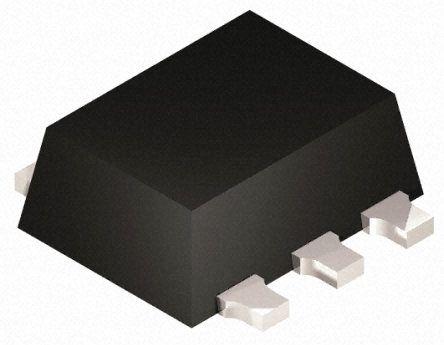

Toshiba TC7SZ125AFS(TPL3), Bus Buffer, 6ns 32mA, 1.65 → 5.5 V, 5-Pin SON

TC7SZ125AFS-TPL3- Toshiba TC7SZ125AFS(TPL3), Bus Buffer, 6ns 32mA, 1.65 → 5.5 V, 5-Pin SON
Toshiba

Product Information

Maximum Low Level Output Current:
32mA
Maximum High Level Output Current:
-32mA
Dimensions:
1 x 0.8 x 0.48mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
6ns
Number of Element Inputs:
2
Minimum Operating Supply Voltage:
1.65 V
Logic Family:
LMOS
Height:
0.48mm
Width:
0.8mm
Length:
1mm
Package Type:
SON
Number of Elements per Chip:
1
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
5.5 V
Maximum Operating Temperature:
+85 °C
Pin Count:
5
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is Bus Buffer 6ns 32mA 1.65 → 5.5 V 5-Pin SON manufactured by Toshiba. The manufacturer part number is TC7SZ125AFS(TPL3). On the other hand, it is featured with 32ma of max. low level output current. While a -32ma of maximum high level output current. The given dimensions of the product include 1 x 0.8 x 0.48mm. The product is available in surface mount configuration. It provides up to 6ns maximum propagation delay time. Moreover, it has 2 standard element inputs . While its minimum operating supply voltage is 1.65 v. The logic family is lmos. In addition, the height is 0.48mm. Furthermore, the product is 0.8mm wide. Its accurate length is 1mm. The package is a sort of son. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. It has 5.5 v maximum operating supply voltage. It has a maximum operating temperature of +85 °c. It contains 5 pins. Features 50pf of propagation delay test condition.

pdf icon
Bus Buffer 3-State Output Datasheet(Technical Reference)
