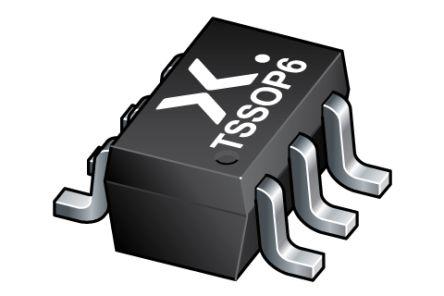

Nexperia 74LVC2G07GW-Q100H, Dual Non-Inverting Schmitt Trigger Open Drain Buffer, 6-Pin SC-88

74LVC2G07GW-Q100H Nexperia , Dual Non-Inverting Schmitt Trigger Open Drain Buffer, 6-Pin SC-88
Nexperia

Product Information

Polarity:
Non-Inverting
Dimensions:
2.2 x 1.35 x 1mm
Logic Family:
74LVC
Width:
1.35mm
Input Type:
Schmitt Trigger
Automotive Standard:
AEC-Q100
Maximum Low Level Output Current:
32mA
Maximum Propagation Delay Time @ Maximum CL:
8.4 ns @ 50 pF
Minimum Operating Supply Voltage:
1.65 V
Output Type:
Open Drain
Package Type:
SC-88
Number of Channels:
2
Maximum Operating Temperature:
+125 °C
Length:
2.2mm
Pin Count:
6
Maximum Operating Supply Voltage:
5.5 V
Mounting Type:
Surface Mount
Logic Function:
Buffer
Height:
1mm
Minimum Operating Temperature:
-40 °C
Schmitt Trigger Input:
Yes
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is Dual Non-Inverting Schmitt Trigger Open Drain Buffer 6-Pin SC-88 manufactured by Nexperia. The manufacturer part number is 74LVC2G07GW-Q100H. While providing non-inverting polarity. The given dimensions of the product include 2.2 x 1.35 x 1mm. The logic family is 74lvc. Furthermore, the product is 1.35mm wide. It carries schmitt trigger input type. The product complies with automotive standard - aec-q100. On the other hand, it is featured with 32ma of max. low level output current. It provides up to 8.4 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 1.65 v. Furthermore, it has aopen drain output. The package is a sort of sc-88. It is supplied with 2 channels. It has a maximum operating temperature of +125 °c. Its accurate length is 2.2mm. It contains 6 pins. It has 5.5 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes buffer. In addition, the height is 1mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - yes. Features 50pf of propagation delay test condition.
