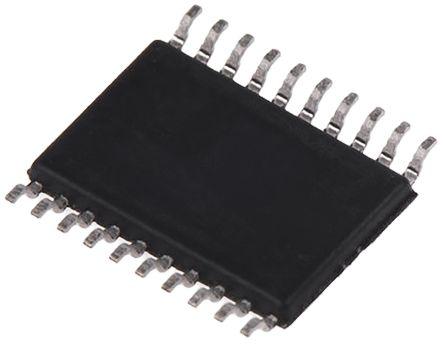

ON Semiconductor MC74LCX244DTG, 10-channel Non-Inverting 3-State Buffer, 20-Pin TSSOP

MC74LCX244DTG ON Semiconductor , 10-channel Non-Inverting 3-State Buffer, 20-Pin TSSOP
MC74LCX244DTG
ON Semiconductor

Product Information

Polarity:
Non-Inverting
Dimensions:
6.6 x 4.5 x 1.05mm
Logic Family:
LCX
Width:
4.5mm
Input Type:
TTL
Maximum Low Level Output Current:
24mA
Maximum High Level Output Current:
-24mA
Maximum Propagation Delay Time @ Maximum CL:
7.5 ns @ 50 pF
Minimum Operating Supply Voltage:
2 V
Output Type:
3 State
Package Type:
TSSOP
Number of Channels:
10
Maximum Operating Temperature:
+125 °C
Length:
6.6mm
Pin Count:
20
Maximum Operating Supply Voltage:
3.6 V
Mounting Type:
Surface Mount
Logic Function:
Buffer
Height:
1.05mm
Minimum Operating Temperature:
-55 °C
Schmitt Trigger Input:
No
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is 10-channel Non-Inverting 3-State Buffer 20-Pin TSSOP manufactured by ON Semiconductor. The manufacturer part number is MC74LCX244DTG. While providing non-inverting polarity. The given dimensions of the product include 6.6 x 4.5 x 1.05mm. The logic family is lcx. Furthermore, the product is 4.5mm wide. It carries ttl input type. On the other hand, it is featured with 24ma of max. low level output current. While a -24ma of maximum high level output current. It provides up to 7.5 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 2 v. Furthermore, it has a3 state output. The package is a sort of tssop. It is supplied with 10 channels. It has a maximum operating temperature of +125 °c. Its accurate length is 6.6mm. It contains 20 pins. It has 3.6 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes buffer. In addition, the height is 1.05mm. Whereas, the minimum operating temperature of the product is -55 °c. Schmitt Trigger Input - no. Features 50pf of propagation delay test condition.
