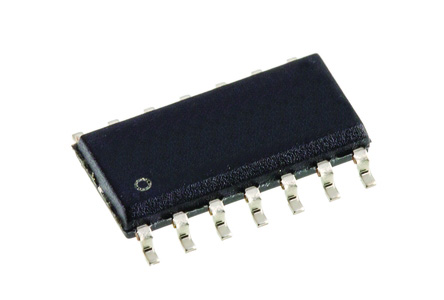

CMOS Hex Open Drain Output Buffer SOP

Enrgtech Part No: ET14004769
|
Manufacturer Part No:
74LVC07AS14-13
|
Manufacturer: DiodesZetex

74LVC07AS14-13 CMOS Hex Open Drain Output Buffer SOP

Product Information

Polarity:

Non-Inverting

Dimensions:

8.74 x 3.99 x 1.45mm

Logic Family:

74LVC

Width:

3.99mm

Input Type:

CMOS

Maximum Low Level Output Current:

32mA

Maximum Propagation Delay Time @ Maximum CL:

7.6 ns @ 50 pF

Minimum Operating Supply Voltage:

1.65 V

Output Type:

Open Drain

Package Type:

SOIC

Number of Channels:

Maximum Operating Temperature:

+125 °C

Checking for live stock

This is CMOS Hex Open Drain Output Buffer SOP manufactured by DiodesZetex. The manufacturer part number is 74LVC07AS14-13. While providing non-inverting polarity. The given dimensions of the product include 8.74 x 3.99 x 1.45mm. The logic family is 74lvc. Furthermore, the product is 3.99mm wide. It carries cmos input type. On the other hand, it is featured with 32ma of max. low level output current. It provides up to 7.6 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 1.65 v. Furthermore, it has aopen drain output. The package is a sort of soic. It is supplied with 6 channels. It has a maximum operating temperature of +125 °c. Its accurate length is 8.74mm. It contains 14 pins. It has 5.5 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes buffer. In addition, the height is 1.45mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - no. Features 50pf of propagation delay test condition.
