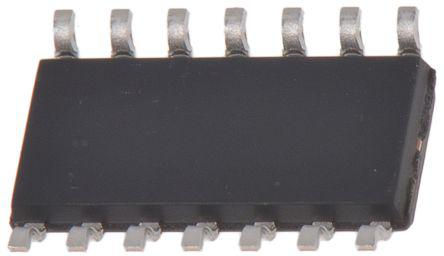

This is Quad Non-Inverting Schmitt Trigger 3-State Buffer 2 → 6 V 14-Pin SOIC manufactured by DiodesZetex. The manufacturer part number is 74HC125S14-13. While providing non-inverting polarity. The given dimensions of the product include 8.74 x 3.99 x 1.48mm. The logic family is hc. Furthermore, the product is 3.99mm wide. It carries schmitt trigger input type. On the other hand, it is featured with 5.2ma of max. low level output current. While a -4ma of maximum high level output current. It provides up to 150 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 2 v. Furthermore, it has a3 state output. The package is a sort of soic. It is supplied with 4 channels. It has a maximum operating temperature of +125 °c. Its accurate length is 8.74mm. It contains 14 pins. It has 6 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes schmitt trigger buffer. In addition, the height is 1.48mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - yes. Features 50pf of propagation delay test condition.
For more information please check the datasheets.
