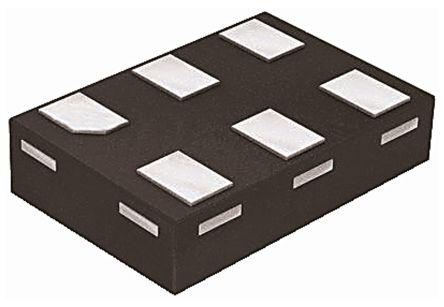

DiodesZetex 74AUP2G17FZ4-7, Dual Inverting, Non-Inverting Schmitt Trigger Push-Pull Buffer, 0.8 → 3.6 V, 6-Pin

74AUP2G17FZ4-7 DiodesZetex , Dual Inverting, Non-Inverting Schmitt Trigger Push-Pull Buffer, 0.8 → 3.6 V, 6-Pin
DiodesZetex

Product Information

Polarity:
Inverting, Non-Inverting
Dimensions:
1.45 x 1.05 x 0.35mm
Logic Family:
CMOS
Width:
1mm
Input Type:
Schmitt Trigger
Maximum Low Level Output Current:
4mA
Maximum High Level Output Current:
-4mA
Maximum Propagation Delay Time @ Maximum CL:
6.9 ns @ 30 pF
Minimum Operating Supply Voltage:
0.8 V
Output Type:
Push-Pull
Package Type:
X2-DFN1410
Number of Channels:
2
Maximum Operating Temperature:
+125 °C
Length:
1.4mm
Pin Count:
6
Maximum Operating Supply Voltage:
3.6 V
Mounting Type:
Surface Mount
Logic Function:
Buffer
Height:
0.37mm
Minimum Operating Temperature:
-40 °C
Schmitt Trigger Input:
Yes
Propagation Delay Test Condition:
30pF
RoHs Compliant
Checking for live stock

This is Dual Inverting Non-Inverting Schmitt Trigger Push-Pull Buffer 0.8 → 3.6 V 6-Pin manufactured by DiodesZetex. The manufacturer part number is 74AUP2G17FZ4-7. While providing inverting, non-inverting polarity. The given dimensions of the product include 1.45 x 1.05 x 0.35mm. The logic family is cmos. Furthermore, the product is 1mm wide. It carries schmitt trigger input type. On the other hand, it is featured with 4ma of max. low level output current. While a -4ma of maximum high level output current. It provides up to 6.9 ns @ 30 pf maximum propagation delay time. While its minimum operating supply voltage is 0.8 v. Furthermore, it has apush-pull output. The package is a sort of x2-dfn1410. It is supplied with 2 channels. It has a maximum operating temperature of +125 °c. Its accurate length is 1.4mm. It contains 6 pins. It has 3.6 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes buffer. In addition, the height is 0.37mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - yes. Features 30pf of propagation delay test condition.

pdf icon
74AUP2G17 DUAL SCHMITT TRIGGER BUFFERS(Technical Reference)
