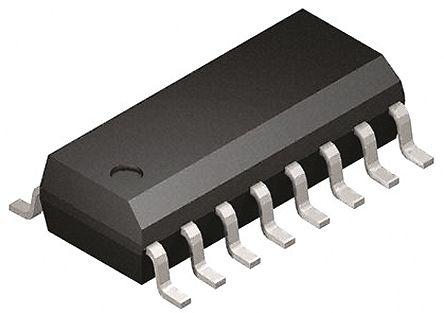

Linear Technology, LTC1775CS#PBF Switching Regulator, 1-Channel 2A Adjustable 16-Pin, SOIC

LTC1775CS-PBF Linear Technology, LTC1775CS#PBF Switching Regulator, 1-Channel 2A Adjustable 16-Pin, SOIC
Analog Devices

Product Information

Dimensions:
10.008 x 3.988 x 1.498mm
Width:
3.988mm
Maximum Output Voltage:
36 V
Load Regulation:
0.2 %
Output Type:
Adjustable
Maximum Switching Frequency:
165 kHz
Package Type:
SOIC
Regulator Function:
Step Down
Maximum Operating Temperature:
+70 °C
Number of Outputs:
1
Line Regulation:
0.01 %/V
Length:
10.01mm
Minimum Output Voltage:
1.19 V
Pin Count:
16
Mounting Type:
Surface Mount
Height:
1.498mm
Minimum Operating Temperature:
0 °C
Minimum Input Voltage:
4 V
Maximum Output Current:
2A
Maximum Input Voltage:
36 V
Switching Regulator:
Yes
RoHs Compliant
Checking for live stock

This is Linear Technology Switching Regulator 1-Channel 2A Adjustable 16-Pin SOIC manufactured by Analog Devices. The manufacturer part number is LTC1775CS#PBF. The given dimensions of the product include 10.008 x 3.988 x 1.498mm. Furthermore, the product is 3.988mm wide. Its output voltage (maximum) includes 36 v. Load Regulation - 0.2 %. Furthermore, it has aadjustable output. It has a maximum 165 khz switching frequency. The package is a sort of soic. It has a/an step down function regulator . It has a maximum operating temperature of +70 °c. Additionally, the product is supplied with 1 outputs. Has a line regulation of 0.01 %/v. Its accurate length is 10.01mm. The product features 1.19 v minimum output voltage. It contains 16 pins. The product is available in surface mount configuration. In addition, the height is 1.498mm. Whereas, the minimum operating temperature of the product is 0 °c. The product has 4 v of minimum input voltage. Featuring 2a of maximum output current. 36 v is the maximum voltage of the bespoke product. It has a switching regulator yes .
