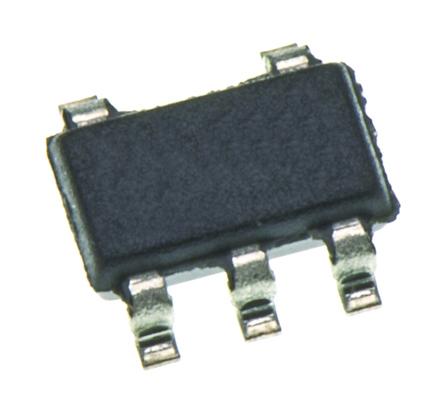

Linear Technology, LT8300ES5#TRMPBF Step-Down Switching Regulator, 1-Channel 260mA Adjustable 5-Pin, TSOT-23

LT8300ES5-TRMPBF Linear Technology, LT8300ES5#TRMPBF Step-Down Switching Regulator, 1-Channel 260mA Adjustable 5-Pin, TSOT-23
Analog Devices

Product Information

Number of Outputs:
1
Dimensions:
2.9 x 1.75 x 0.9mm
Mounting Type:
Surface Mount
Maximum Operating Temperature:
+125 °C
Maximum Switching Frequency:
780 kHz
Output Type:
Adjustable
Height:
0.9mm
Switching Regulator:
Yes
Width:
1.75mm
Length:
2.9mm
Maximum Input Voltage:
100 V
Package Type:
TSOT-23
Regulator Function:
Buck
Minimum Operating Temperature:
-40 °C
Minimum Input Voltage:
6 V
Maximum Output Current:
260mA
Pin Count:
5
Line Regulation:
0.01 %/V
RoHs Compliant
Checking for live stock

This is Linear Technology Step-Down Switching Regulator 1-Channel 260mA Adjustable 5-Pin TSOT-23 manufactured by Analog Devices. The manufacturer part number is LT8300ES5#TRMPBF. Additionally, the product is supplied with 1 outputs. The given dimensions of the product include 2.9 x 1.75 x 0.9mm. The product is available in surface mount configuration. It has a maximum operating temperature of +125 °c. It has a maximum 780 khz switching frequency. Furthermore, it has aadjustable output. In addition, the height is 0.9mm. It has a switching regulator yes . Furthermore, the product is 1.75mm wide. Its accurate length is 2.9mm. 100 v is the maximum voltage of the bespoke product. The package is a sort of tsot-23. It has a/an buck function regulator . Whereas, the minimum operating temperature of the product is -40 °c. The product has 6 v of minimum input voltage. Featuring 260ma of maximum output current. It contains 5 pins. Has a line regulation of 0.01 %/v.

pdf icon
LT8300 100VIN Micropower Isolated Flyback Converter with 150V/260mA Switch(Technical Reference)
