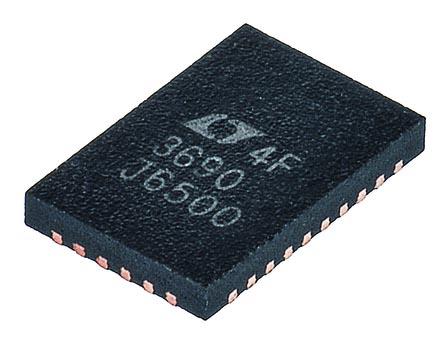

Linear Technology, LT3690IUFE#PBF DC-DC Converter, 1-Channel 4A Adjustable 26-Pin, QFN

LT3690IUFE-PBF Linear Technology, LT3690IUFE#PBF DC-DC Converter, 1-Channel 4A Adjustable 26-Pin, QFN
LT3690IUFE#PBF
Analog Devices

Product Information

Number of Outputs:
1
Dimensions:
4 x 6 x 0.75mm
Mounting Type:
Surface Mount
Maximum Output Voltage:
20 V
Maximum Operating Temperature:
+125 °C
Maximum Switching Frequency:
1.68 MHz
Output Type:
Adjustable
Height:
0.75mm
Switching Regulator:
Yes
Width:
6mm
Length:
4mm
Maximum Input Voltage:
36 V
Package Type:
QFN
Regulator Function:
Step Down
Minimum Operating Temperature:
-40 °C
Minimum Output Voltage:
0.8 V
Minimum Input Voltage:
3.9 V
Maximum Output Current:
4A
Pin Count:
26
Line Regulation:
0.01 %/V
RoHs Compliant
Checking for live stock

This is Linear Technology DC-DC Converter 1-Channel 4A Adjustable 26-Pin QFN manufactured by Analog Devices. The manufacturer part number is LT3690IUFE#PBF. Additionally, the product is supplied with 1 outputs. The given dimensions of the product include 4 x 6 x 0.75mm. The product is available in surface mount configuration. Its output voltage (maximum) includes 20 v. It has a maximum operating temperature of +125 °c. It has a maximum 1.68 mhz switching frequency. Furthermore, it has aadjustable output. In addition, the height is 0.75mm. It has a switching regulator yes . Furthermore, the product is 6mm wide. Its accurate length is 4mm. 36 v is the maximum voltage of the bespoke product. The package is a sort of qfn. It has a/an step down function regulator . Whereas, the minimum operating temperature of the product is -40 °c. The product features 0.8 v minimum output voltage. The product has 3.9 v of minimum input voltage. Featuring 4a of maximum output current. It contains 26 pins. Has a line regulation of 0.01 %/v.

pdf icon
LT3690,DC-DC Step Down Regulator(Technical Reference)
