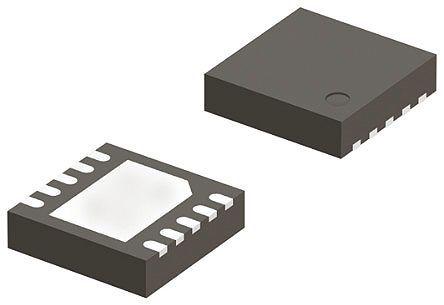

Linear Technology, LT3502EDC#TRMPBF Switching Regulator, 1-Channel 500mA 10-Pin, DFN

LT3502EDC-TRMPBF Linear Technology, LT3502EDC#TRMPBF Switching Regulator, 1-Channel 500mA 10-Pin, DFN
Analog Devices

Product Information

Number of Outputs:
1
Dimensions:
3 x 3 x 0.9984mm
Mounting Type:
Surface Mount
Maximum Output Voltage:
50 V
Maximum Operating Temperature:
+125 °C
Maximum Switching Frequency:
1.4 MHz
Switching Regulator:
Yes
Height:
0.998mm
Width:
3mm
Length:
3mm
Maximum Input Voltage:
40 V
Package Type:
DFN
Regulator Function:
Buck Controller
Minimum Operating Temperature:
-40 °C
Minimum Output Voltage:
0.8 V
Minimum Input Voltage:
3 V
Maximum Output Current:
500mA
Pin Count:
10
Line Regulation:
0.005 %/V
RoHs Compliant
Checking for live stock

This is Linear Technology Switching Regulator 1-Channel 500mA 10-Pin DFN manufactured by Analog Devices. The manufacturer part number is LT3502EDC#TRMPBF. Additionally, the product is supplied with 1 outputs. The given dimensions of the product include 3 x 3 x 0.9984mm. The product is available in surface mount configuration. Its output voltage (maximum) includes 50 v. It has a maximum operating temperature of +125 °c. It has a maximum 1.4 mhz switching frequency. It has a switching regulator yes . In addition, the height is 0.998mm. Furthermore, the product is 3mm wide. Its accurate length is 3mm. 40 v is the maximum voltage of the bespoke product. The package is a sort of dfn. It has a/an buck controller function regulator . Whereas, the minimum operating temperature of the product is -40 °c. The product features 0.8 v minimum output voltage. The product has 3 v of minimum input voltage. Featuring 500ma of maximum output current. It contains 10 pins. Has a line regulation of 0.005 %/v.

pdf icon
LT3502/LT3502A, 1.1MHz/2.2MHz, 500mA Step-Down Regulators in 2mm x 2mm DFN and MS10 Data Sheet(Technical Reference)
