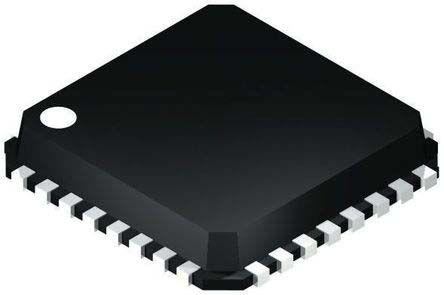

Analog Devices, ADP2116ACPZ-R7 Step-Down Switching Regulator Dual 6A Adjustable 32-Pin, LFCSP

ADP2116ACPZ-R7 Analog Devices,  Step-Down Switching Regulator Dual 6A Adjustable 32-Pin, LFCSP
Analog Devices

Product Information

Dimensions:
5.1 x 5.1 x 0.75mm
Width:
5.1mm
Maximum Output Voltage:
3.3 V
Load Regulation:
0.03 %/A
Output Type:
Adjustable
Maximum Switching Frequency:
2 MHz
Efficiency:
95%
Package Type:
LFCSP
Regulator Function:
Step Down
Maximum Operating Temperature:
+85 °C
Number of Outputs:
2
Line Regulation:
0.05 %/V
Length:
5.1mm
Minimum Output Voltage:
0.6 V
Pin Count:
32
Mounting Type:
Surface Mount
Height:
0.75mm
Minimum Operating Temperature:
-40 °C
Minimum Input Voltage:
2.75 V
Maximum Output Current:
6A
Maximum Input Voltage:
5.5 V
Switching Regulator:
Yes
RoHs Compliant
Checking for live stock

This is Step-Down Switching Regulator Dual 6A Adjustable 32-Pin LFCSP manufactured by Analog Devices. The manufacturer part number is ADP2116ACPZ-R7. The given dimensions of the product include 5.1 x 5.1 x 0.75mm. Furthermore, the product is 5.1mm wide. Its output voltage (maximum) includes 3.3 v. Load Regulation - 0.03 %/a. Furthermore, it has aadjustable output. It has a maximum 2 mhz switching frequency. It is a highly efficient product with an 95% of high efficiency. The package is a sort of lfcsp. It has a/an step down function regulator . It has a maximum operating temperature of +85 °c. Additionally, the product is supplied with 2 outputs. Has a line regulation of 0.05 %/v. Its accurate length is 5.1mm. The product features 0.6 v minimum output voltage. It contains 32 pins. The product is available in surface mount configuration. In addition, the height is 0.75mm. Whereas, the minimum operating temperature of the product is -40 °c. The product has 2.75 v of minimum input voltage. Featuring 6a of maximum output current. 5.5 v is the maximum voltage of the bespoke product. It has a switching regulator yes .
