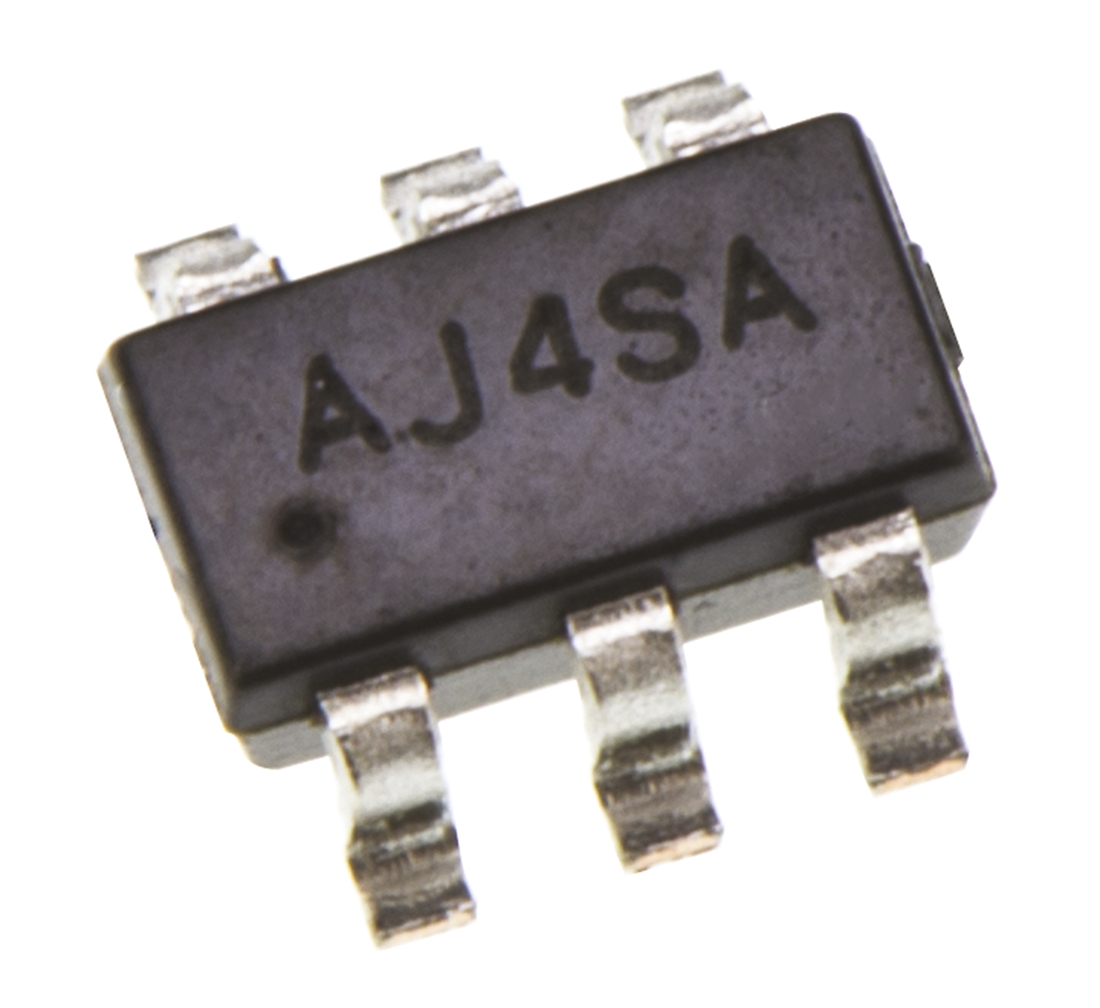

DiodesZetex, AP5100WG-7 DC-DC Converter 1.2A Adjustable, 0.81 to 15 V 3-Pin, SOT-26

AP5100WG-7 DiodesZetex,  DC-DC Converter 1.2A Adjustable, 0.81 to 15 V 3-Pin, SOT-26
AP5100WG-7
DiodesZetex

Product Information

Number of Outputs:
1
Dimensions:
3.1 x 1.7 x 1.3mm
Mounting Type:
Surface Mount
Maximum Output Voltage:
15 V
Maximum Operating Temperature:
+85 °C
Maximum Switching Frequency:
1.4 MHz
Output Type:
Adjustable
Height:
1.3mm
Width:
1.7mm
Length:
3.1mm
Package Type:
SOT-26
Regulator Function:
Buck Controller
Minimum Operating Temperature:
-25 °C
Minimum Output Voltage:
0.81 V
Minimum Input Voltage:
4.75 V
Maximum Output Current:
1.2A
Pin Count:
3
Maximum Input Voltage:
24 V
RoHs Compliant
Checking for live stock

This is DC-DC Converter 1.2A Adjustable 0.81 to 15 V 3-Pin SOT-26 manufactured by DiodesZetex. The manufacturer part number is AP5100WG-7. Additionally, the product is supplied with 1 outputs. The given dimensions of the product include 3.1 x 1.7 x 1.3mm. The product is available in surface mount configuration. Its output voltage (maximum) includes 15 v. It has a maximum operating temperature of +85 °c. It has a maximum 1.4 mhz switching frequency. Furthermore, it has aadjustable output. In addition, the height is 1.3mm. Furthermore, the product is 1.7mm wide. Its accurate length is 3.1mm. The package is a sort of sot-26. It has a/an buck controller function regulator . Whereas, the minimum operating temperature of the product is -25 °c. The product features 0.81 v minimum output voltage. The product has 4.75 v of minimum input voltage. Featuring 1.2a of maximum output current. It contains 3 pins. 24 v is the maximum voltage of the bespoke product.

pdf icon
Datasheet(Technical Reference)
