36V 2A 2.8MHz Step-Down Sw. Regulator

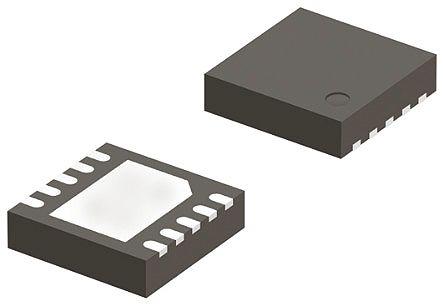

LT3684IDD-PBF 36V 2A 2.8MHz Step-Down Sw. Regulator
Linear Technology

Product Information

Number of Outputs:
1
Dimensions:
3 x 3 x 0.7mm
Mounting Type:
Surface Mount
Maximum Output Voltage:
20 V
Maximum Operating Temperature:
+125 °C
Maximum Switching Frequency:
3.3 MHz
Output Type:
Adjustable
Height:
0.7mm
Switching Regulator:
Yes
Width:
3mm
Length:
3mm
Maximum Input Voltage:
34 V
Package Type:
DFN
Regulator Function:
Step Down
Minimum Operating Temperature:
-40 °C
Minimum Output Voltage:
1.265 V
Minimum Input Voltage:
3.6 V
Maximum Output Current:
2A
Pin Count:
10
Line Regulation:
0.02 %/V
RoHs Compliant
Checking for live stock

This is 36V 2A 2.8MHz Step-Down Sw. Regulator manufactured by Linear Technology. The manufacturer part number is LT3684IDD#PBF. Additionally, the product is supplied with 1 outputs. The given dimensions of the product include 3 x 3 x 0.7mm. The product is available in surface mount configuration. Its output voltage (maximum) includes 20 v. It has a maximum operating temperature of +125 °c. It has a maximum 3.3 mhz switching frequency. Furthermore, it has aadjustable output. In addition, the height is 0.7mm. It has a switching regulator yes . Furthermore, the product is 3mm wide. Its accurate length is 3mm. 34 v is the maximum voltage of the bespoke product. The package is a sort of dfn. It has a/an step down function regulator . Whereas, the minimum operating temperature of the product is -40 °c. The product features 1.265 v minimum output voltage. The product has 3.6 v of minimum input voltage. Featuring 2a of maximum output current. It contains 10 pins. Has a line regulation of 0.02 %/v.

pdf icon
LT3684IDD#PBF Step-Down Switching Regulator Data Sheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search LT3684IDD#PBF on website for other similar products.
We accept all major payment methods for all products including ET11466157. Please check your shopping cart at the time of order.
You can order Linear Technology brand products with LT3684IDD#PBF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Buck Converters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of 36V 2A 2.8MHz Step-Down Sw. Regulator. You can also check on our website or by contacting our customer support team for further order details on 36V 2A 2.8MHz Step-Down Sw. Regulator.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11466157 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Linear Technology" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11466157.
Yes. We ship LT3684IDD#PBF Internationally to many countries around the world.
