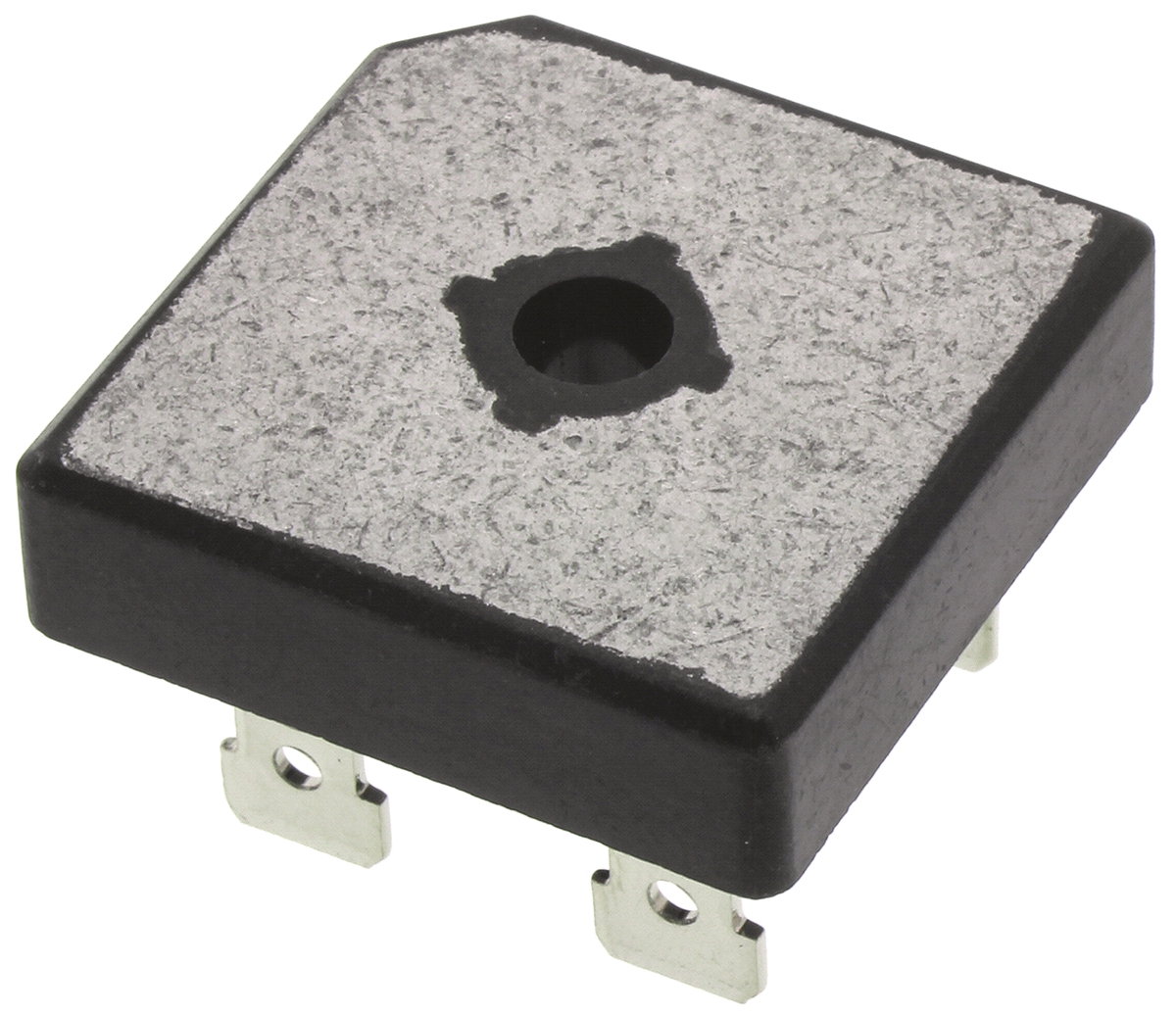

Vishay GBPC2510-E4, Bridge Rectifier, 25A 1000V, 4-Pin GBPC

Enrgtech Part No: ET14130668
|
Manufacturer Part No:
GBPC2510-E4
|
Manufacturer: Vishay

GBPC2510-E4 Vishay , Bridge Rectifier, 25A 1000V, 4-Pin GBPC

Product Information

Peak Reverse Current:

5µA

Dimensions:

28.8 x 28.8 x 7.62mm

Bridge Type:

Single Phase

Diode Technology:

Silicon Junction

Peak Average Forward Current:

25A

Peak Non-Repetitive Forward Surge Current:

300A

Height:

7.62mm

Peak Forward Voltage:

1.1V

Width:

28.8mm

Length:

28.8mm

Package Type:

GBPC

Peak Reverse Repetitive Voltage:

1000V

Checking for live stock

This is Bridge Rectifier 25A 1000V 4-Pin GBPC manufactured by Vishay. The manufacturer part number is GBPC2510-E4. It has a typical 5µa peak reverse current . The given dimensions of the product include 28.8 x 28.8 x 7.62mm. It contains a/an single phase type bridge . The product utilizes silicon junction diode technology. Additionally, it has about 25a of peak average forward current . Moreover, a bespoke product has 300a peak non-repetitive forward surge current. In addition, the height is 7.62mm. Whereas, the peak forward voltage is about 1.1v . Furthermore, the product is 28.8mm wide. Its accurate length is 28.8mm. The package is a sort of gbpc. While having the peak reverse repetitive 1000v. Whereas, the minimum operating temperature of the product is -55 °c. The product is available in screw mount configuration. The product is available in single configuration. It has a maximum operating temperature of +150 °c. It contains 4 pins.
