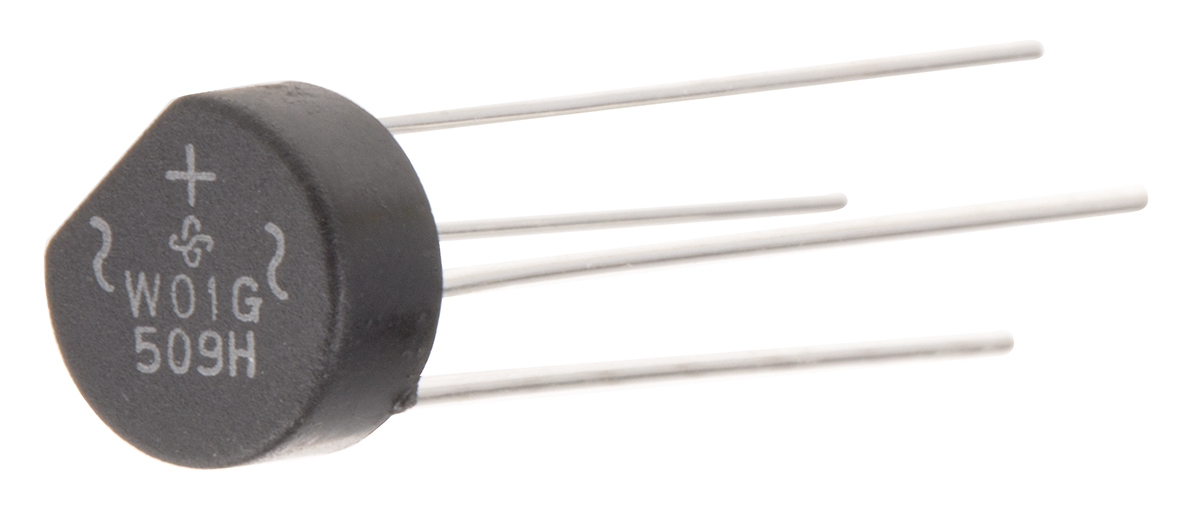

Vishay W01G-E4/51, Bridge Rectifier, 1.5A 100V, 4-Pin WOG

Enrgtech Part No: ET14032097
|
Manufacturer Part No:
W01G-E4/51
|
Manufacturer: Vishay

W01G-E4-51 Vishay W01G-E4/51, Bridge Rectifier, 1.5A 100V, 4-Pin WOG

Product Information

Peak Reverse Current:

5µA

Dimensions:

9.86 x 8.84 x 5.6mm

Bridge Type:

Single Phase

Diode Technology:

Silicon Junction

Peak Average Forward Current:

1.5A

Peak Non-Repetitive Forward Surge Current:

50A

Height:

5.6mm

Peak Forward Voltage:

Width:

8.84mm

Length:

9.86mm

Package Type:

WOG

Peak Reverse Repetitive Voltage:

100V

Checking for live stock

This is Bridge Rectifier 1.5A 100V 4-Pin WOG manufactured by Vishay. The manufacturer part number is W01G-E4/51. It has a typical 5µa peak reverse current . The given dimensions of the product include 9.86 x 8.84 x 5.6mm. It contains a/an single phase type bridge . The product utilizes silicon junction diode technology. Additionally, it has about 1.5a of peak average forward current . Moreover, a bespoke product has 50a peak non-repetitive forward surge current. In addition, the height is 5.6mm. Whereas, the peak forward voltage is about 1v . Furthermore, the product is 8.84mm wide. Its accurate length is 9.86mm. The package is a sort of wog. While having the peak reverse repetitive 100v. Whereas, the minimum operating temperature of the product is -55 °c. The product is available in through hole configuration. The product is available in single configuration. It has a maximum operating temperature of +150 °c. It contains 4 pins.
