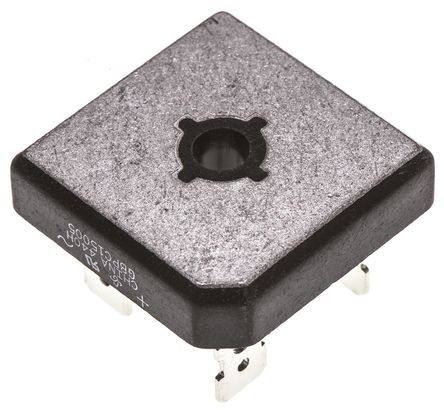

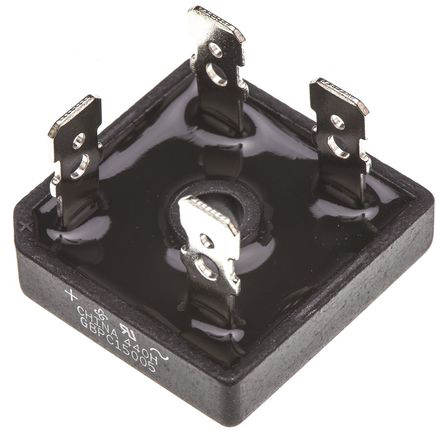

Vishay GBPC2501-E4/51, Bridge Rectifier, 25A 100V, 4-Pin GBPC

Enrgtech Part No: ET14030829
|
Manufacturer Part No:
GBPC2501-E4/51
|
Manufacturer: Vishay

GBPC2501-E4-51 Vishay GBPC2501-E4/51, Bridge Rectifier, 25A 100V, 4-Pin GBPC

Product Information

Peak Reverse Current:

5µA

Dimensions:

28.8 x 28.8 x 7.87mm

Bridge Type:

Single Phase

Peak Non-Repetitive Forward Surge Current:

300A

Peak Average Forward Current:

25A

Junction Capacitance:

300pF

Height:

7.87mm

Peak Forward Voltage:

1.1V

Width:

28.8mm

Length:

28.8mm

Package Type:

GBPC

Peak Reverse Repetitive Voltage:

100V

Checking for live stock

This is Bridge Rectifier 25A 100V 4-Pin GBPC manufactured by Vishay. The manufacturer part number is GBPC2501-E4/51. It has a typical 5µa peak reverse current . The given dimensions of the product include 28.8 x 28.8 x 7.87mm. It contains a/an single phase type bridge . Moreover, a bespoke product has 300a peak non-repetitive forward surge current. Additionally, it has about 25a of peak average forward current . It has a junction capacitance of 300pf . In addition, the height is 7.87mm. Whereas, the peak forward voltage is about 1.1v . Furthermore, the product is 28.8mm wide. Its accurate length is 28.8mm. The package is a sort of gbpc. While having the peak reverse repetitive 100v. Whereas, the minimum operating temperature of the product is -55 °c. The product is available in through hole configuration. The product is available in single configuration. It has a maximum operating temperature of +150 °c. It contains 4 pins.
