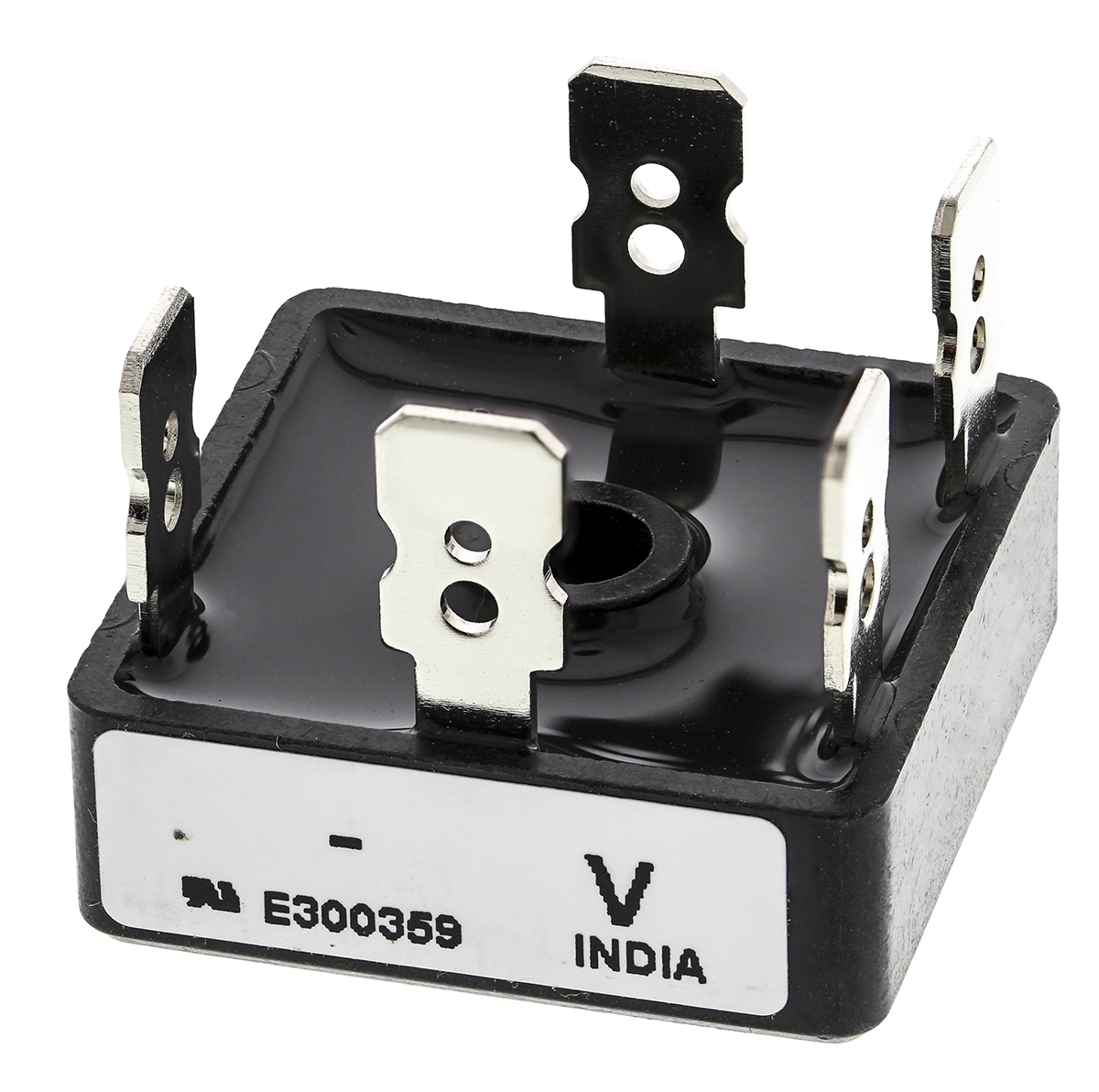

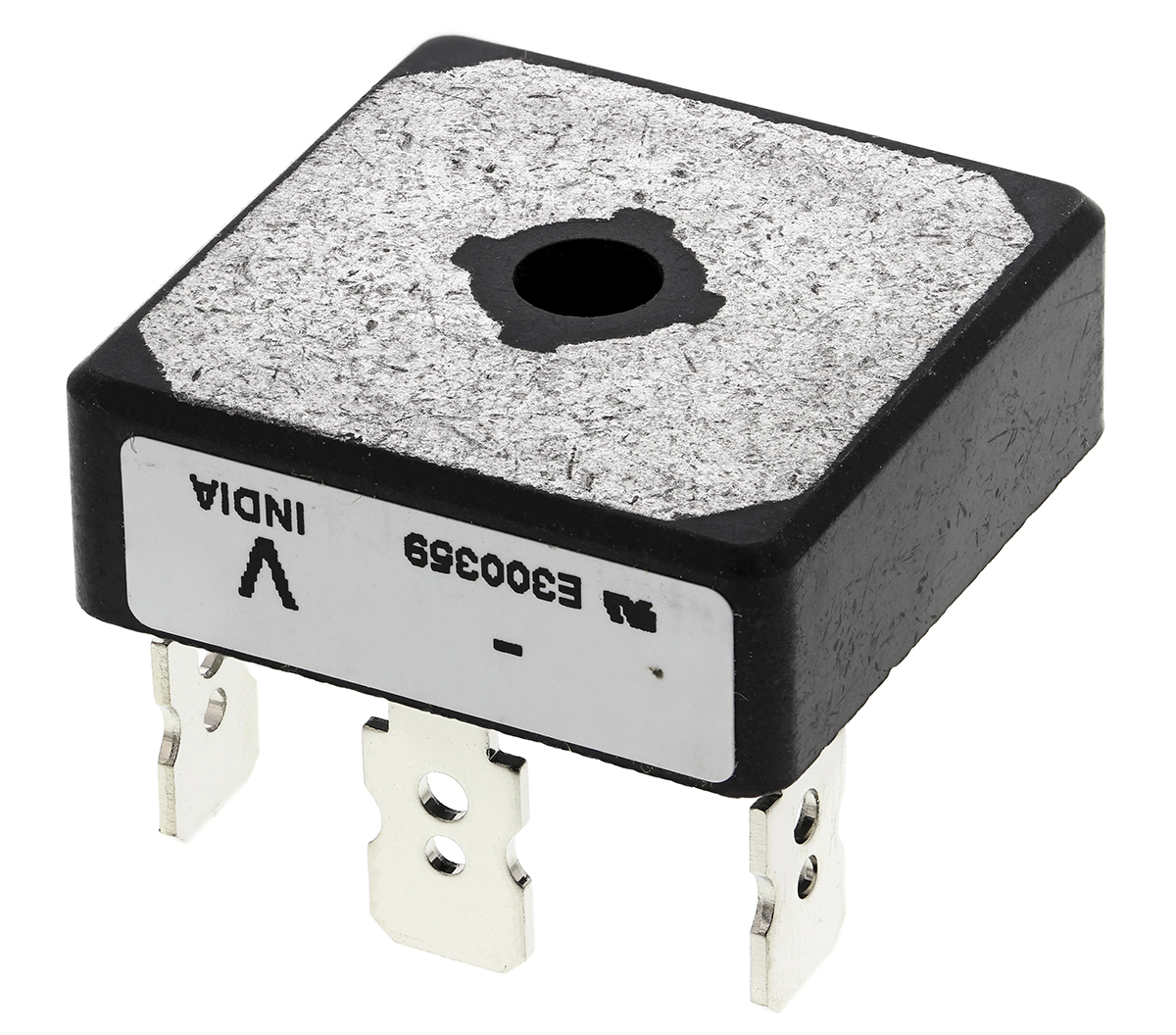

Vishay VS-36MT120, 3-phase Bridge Rectifier, 35A 1200V, 5-Pin D 63

VS-36MT120 Vishay , 3-phase Bridge Rectifier, 35A 1200V, 5-Pin D 63
VS-36MT120
Vishay

Product Information

Peak Reverse Current:
200µA
Dimensions:
28.5 x 28.5 x 10mm
Bridge Type:
Three Phase
Peak Non-Repetitive Forward Surge Current:
500A
Peak Average Forward Current:
35A
Height:
10mm
Peak Forward Voltage:
1.19V
Width:
28.5mm
Length:
28.5mm
Package Type:
D 63
Peak Reverse Repetitive Voltage:
1200V
Minimum Operating Temperature:
-55 °C
Mounting Type:
Through Hole
Configuration:
Single
Maximum Operating Temperature:
+150 °C
Pin Count:
5
RoHs Compliant
Checking for live stock

This is 3-phase Bridge Rectifier 35A 1200V 5-Pin D 63 manufactured by Vishay. The manufacturer part number is VS-36MT120. It has a typical 200µa peak reverse current . The given dimensions of the product include 28.5 x 28.5 x 10mm. It contains a/an three phase type bridge . Moreover, a bespoke product has 500a peak non-repetitive forward surge current. Additionally, it has about 35a of peak average forward current . In addition, the height is 10mm. Whereas, the peak forward voltage is about 1.19v . Furthermore, the product is 28.5mm wide. Its accurate length is 28.5mm. The package is a sort of d 63. While having the peak reverse repetitive 1200v. Whereas, the minimum operating temperature of the product is -55 °c. The product is available in through hole configuration. The product is available in single configuration. It has a maximum operating temperature of +150 °c. It contains 5 pins.

pdf icon
Datasheet(Technical Reference)
pdf icon
Package Drawing(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
