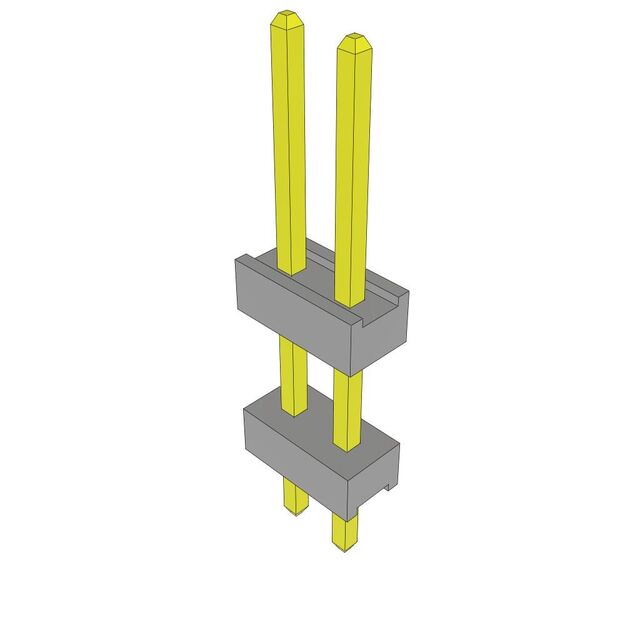

Samtec Inc. TW-02-05-L-S-250-100

TW-02-05-L-S-250-100 Samtec Inc.
Samtec Inc.

Product Information

HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Contact Finish Thickness - Post (Mating):
10.0µin (0.25µm)
Length - Tail:
0.100" (2.540mm)
Number of Positions:
2
title:
TW-02-05-L-S-250-100
Length - Overall Pin:
0.594" (15.088mm)
REACH Status:
REACH Unaffected
edacadModel:
TW-02-05-L-S-250-100 Models
Number of Rows:
1
Length - Post (Mating):
0.244" (6.198mm)
edacadModelUrl:
/en/models/6709626
Manufacturer:
Samtec Inc.
Length - Stack Height:
0.250" (6.350mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
6 Weeks
Mounting Type:
Through Hole
Color:
Black
Series:
TW
Packaging:
Bulk
Pitch:
0.079" (2.00mm)
Contact Finish - Post (Mating):
Gold
Row Spacing:
-
Base Product Number:
TW-02-05
ECCN:
EAR99
Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is TW-02-05-L-S-250-100. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product is 10.0µin (0.25µm) in finish thickness. The product's tail length is 0.100" (2.540mm). The product carries possible position value of 2. The overall length of the product's pin is 0.594" (15.088mm). In addition, it is reach unaffected. It comes in 1 of rows. 0.244" (6.198mm) is the possible post length of the product. The samtec inc.'s product offers user-desired applications. Regarding the stack height, it is 0.250" (6.350mm). Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 6 weeks standard lead time. The product is available in through hole configuration. It has a classic black colour. The product tw, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. Moreover, the product is 0.079" (2.00mm). It is finished with excellent gold. Moreover, it corresponds to tw-02-05, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
TW Series Datasheet 03(Datasheets)
pdf icon
TW Datasheet(Datasheets)
pdf icon
Flexible Board Stacking Header, 2.00 mm Pitch(Datasheets)
pdf icon
TMM Series Other Related Documents 03(Other Related Documents)
pdf icon
Flexible Board Stacking Header, 2.00 mm Pitch(Other Related Documents)
pdf icon
TW-TH 2mm Drawing 1(Product Drawings)
pdf icon
TW-TH 2mm Drawing 3(Product Drawings)
pdf icon
TW-TH 2mm Drawing 2(Product Drawings)
