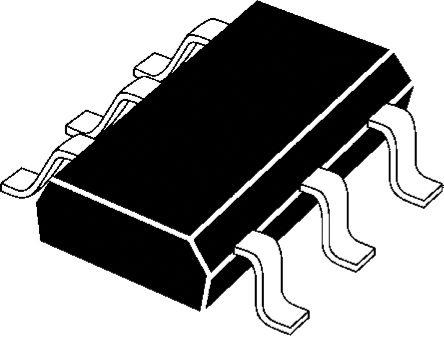

ON Semi MBT3904DW1T3G Dual NPN Transistor, 200 mA, 40 V, 6-Pin SOT-363

MBT3904DW1T3G ON Semi Dual NPN Transistor, 200 mA, 40 V, 6-Pin SOT-363
MBT3904DW1T3G
ON Semiconductor

Product Information

Transistor Type:
NPN
Dimensions:
2.2 x 1.35 x 1mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
150 mW
Maximum Collector Emitter Saturation Voltage:
0.3 V
Maximum Collector Base Voltage:
60 V
Maximum Collector Emitter Voltage:
40 V
Maximum Base Emitter Saturation Voltage:
0.95 V
Maximum Operating Frequency:
100 MHz
Maximum Emitter Base Voltage:
6 V
Package Type:
SOT-363 (SC-88)
Number of Elements per Chip:
2
Maximum DC Collector Current:
200 mA
Maximum Operating Temperature:
+150 °C
Pin Count:
6
Transistor Configuration:
Isolated
RoHs Compliant
Checking for live stock

This is ON Semi Dual NPN Transistor 200 mA 40 V 6-Pin SOT-363 manufactured by ON Semiconductor. The manufacturer part number is MBT3904DW1T3G. The transistor is a npn type. The given dimensions of the product include 2.2 x 1.35 x 1mm. The product is available in surface mount configuration. Provides up to 150 mw maximum power dissipation. The product has a maximum 0.3 v collector emitter saturation voltage . Additionally, it has 60 v maximum collector base voltage. Whereas features a 40 v of collector emitter voltage (max). In addition, the product has a maximum 0.95 v base emitter saturation voltage . It carries 100 mhz of maximum operating frequency. It features a 6 v of maximum emitter base voltage. The package is a sort of sot-363 (sc-88). It consists of 2 elements per chip. Moreover, it has a maximum DC collector current of 200 ma. It has a maximum operating temperature of +150 °c. It contains 6 pins. The product offers isolated transistor configuration.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship MBT3904DW1T3G Internationally to many countries around the world.
Yes. You can also search MBT3904DW1T3G on website for other similar products.
We accept all major payment methods for all products including ET16830713. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16830713 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"ON Semiconductor" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16830713.
You can order ON Semiconductor brand products with MBT3904DW1T3G directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in BJT & Bipolar Transistors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of ON Semi MBT3904DW1T3G Dual NPN Transistor, 200 mA, 40 V, 6-Pin SOT-363. You can also check on our website or by contacting our customer support team for further order details on ON Semi MBT3904DW1T3G Dual NPN Transistor, 200 mA, 40 V, 6-Pin SOT-363.
