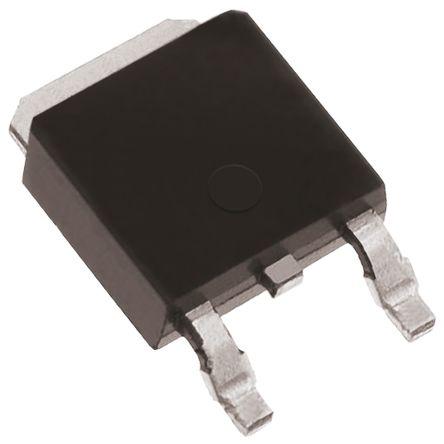

ROHM 2SC5001TLQ NPN Bipolar Transistor, 10 A, 20 V, 3-Pin SC-63

2SC5001TLQ ROHM NPN Bipolar Transistor, 10 A, 20 V, 3-Pin SC-63
2SC5001TLQ
ROHM

Product Information

Minimum DC Current Gain:
82
Transistor Type:
NPN
Dimensions:
6.7 x 5.8 x 2.5mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
10 W
Maximum Collector Emitter Saturation Voltage:
0.25 V
Maximum Collector Base Voltage:
30 V
Maximum Collector Emitter Voltage:
20 V
Maximum Base Emitter Saturation Voltage:
1.2 V
Maximum Operating Frequency:
50 MHz
Height:
2.5mm
Width:
5.8mm
Length:
6.7mm
Package Type:
SC-63
Number of Elements per Chip:
1
Maximum DC Collector Current:
10 A
Maximum Emitter Base Voltage:
6 V
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is NPN Bipolar Transistor 10 A 20 V 3-Pin SC-63 manufactured by ROHM. The manufacturer part number is 2SC5001TLQ. It features up to 82 of minimum DC current gain. The transistor is a npn type. The given dimensions of the product include 6.7 x 5.8 x 2.5mm. The product is available in surface mount configuration. Provides up to 10 w maximum power dissipation. The product has a maximum 0.25 v collector emitter saturation voltage . Additionally, it has 30 v maximum collector base voltage. Whereas features a 20 v of collector emitter voltage (max). In addition, the product has a maximum 1.2 v base emitter saturation voltage . It carries 50 mhz of maximum operating frequency. In addition, the height is 2.5mm. Furthermore, the product is 5.8mm wide. Its accurate length is 6.7mm. The package is a sort of sc-63. It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of 10 a. It features a 6 v of maximum emitter base voltage. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.

pdf icon
2SC5001 10A 20V Medium Power NPN Transistor(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
