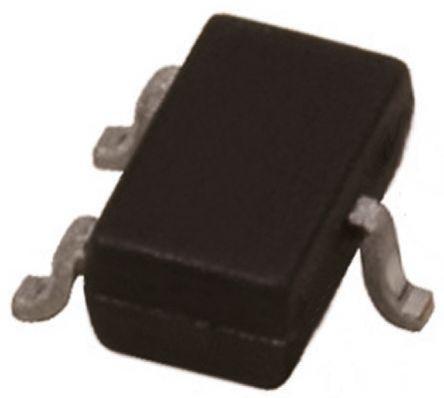

Panasonic DSA2002R0L PNP Transistor, 500 mA, 50 V, 3-Pin Mini3 G3 B B

DSA2002R0L Panasonic PNP Transistor, 500 mA, 50 V, 3-Pin Mini3 G3 B B
Panasonic

Product Information

Dimensions:
2.9 x 1.5 x 1.1mm
Maximum Collector Emitter Saturation Voltage:
-0.6 V
Width:
1.5mm
Transistor Configuration:
Single
Maximum Operating Frequency:
130 MHz
Package Type:
Mini3 G3 B B
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
PRICED TO CLEAR:
Yes
Transistor Type:
PNP
Maximum Collector Base Voltage:
-60 V
Maximum Base Emitter Saturation Voltage:
-1.5 V
Maximum Emitter Base Voltage:
-5 V
Length:
2.9mm
Maximum DC Collector Current:
500 mA
Pin Count:
3
Minimum DC Current Gain:
120
Mounting Type:
Surface Mount
Maximum Power Dissipation:
200 mW
Maximum Collector Emitter Voltage:
50 V
Height:
1.1mm
RoHs Compliant
Checking for live stock

This is PNP Transistor 500 mA 50 V 3-Pin Mini3 G3 B B manufactured by Panasonic. The manufacturer part number is DSA2002R0L. The given dimensions of the product include 2.9 x 1.5 x 1.1mm. The product has a maximum -0.6 v collector emitter saturation voltage . Furthermore, the product is 1.5mm wide. The product offers single transistor configuration. It carries 130 mhz of maximum operating frequency. The package is a sort of mini3 g3 b b. It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. It has a priced to clear feature yes . The transistor is a pnp type. Additionally, it has -60 v maximum collector base voltage. In addition, the product has a maximum -1.5 v base emitter saturation voltage . It features a -5 v of maximum emitter base voltage. Its accurate length is 2.9mm. Moreover, it has a maximum DC collector current of 500 ma. It contains 3 pins. It features up to 120 of minimum DC current gain. The product is available in surface mount configuration. Provides up to 200 mw maximum power dissipation. Whereas features a 50 v of collector emitter voltage (max). In addition, the height is 1.1mm.

pdf icon
DSA2002 Silicon PNP epitaxial planar type Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
