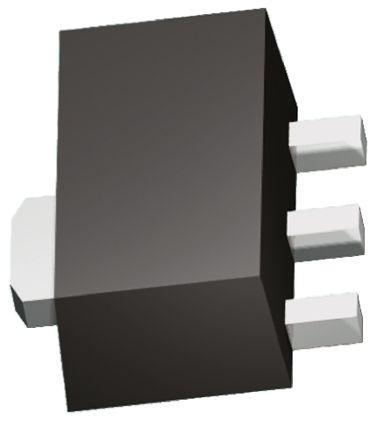

Panasonic DSA7003R0L PNP Transistor, 1 A, 50 V, 3-Pin MiniP3 F2 B

DSA7003R0L Panasonic PNP Transistor, 1 A, 50 V, 3-Pin MiniP3 F2 B
Panasonic

Product Information

Minimum DC Current Gain:
120
Transistor Type:
PNP
Dimensions:
4.5 x 2.5 x 1.5mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
1 W
Maximum Collector Emitter Saturation Voltage:
-0.4 V
Maximum Collector Base Voltage:
-60 V
Maximum Collector Emitter Voltage:
50 V
Maximum Base Emitter Saturation Voltage:
-1.2 V
Maximum Operating Frequency:
120 MHz
Height:
1.5mm
Width:
2.5mm
Length:
4.5mm
Package Type:
MiniP3 F2 B
Number of Elements per Chip:
1
Maximum DC Collector Current:
1 A
Maximum Emitter Base Voltage:
-5 V
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is PNP Transistor 1 A 50 V 3-Pin MiniP3 F2 B manufactured by Panasonic. The manufacturer part number is DSA7003R0L. It features up to 120 of minimum DC current gain. The transistor is a pnp type. The given dimensions of the product include 4.5 x 2.5 x 1.5mm. The product is available in surface mount configuration. Provides up to 1 w maximum power dissipation. The product has a maximum -0.4 v collector emitter saturation voltage . Additionally, it has -60 v maximum collector base voltage. Whereas features a 50 v of collector emitter voltage (max). In addition, the product has a maximum -1.2 v base emitter saturation voltage . It carries 120 mhz of maximum operating frequency. In addition, the height is 1.5mm. Furthermore, the product is 2.5mm wide. Its accurate length is 4.5mm. The package is a sort of minip3 f2 b. It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of 1 a. It features a -5 v of maximum emitter base voltage. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.

pdf icon
DSA7003 Silicon PNP epitaxial planar type Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
