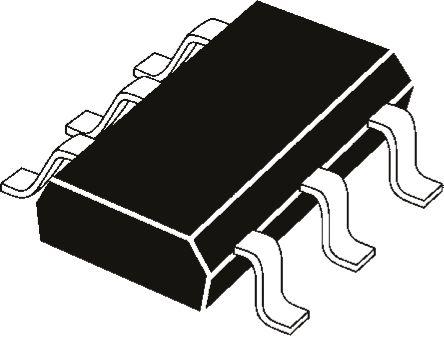

ROHM UMZ2NTR Dual NPN + PNP Bipolar Transistor, 150 mA, 50 V, 6-Pin SOT-363

UMZ2NTR ROHM  Dual NPN + PNP Bipolar Transistor, 150 mA, 50 V, 6-Pin SOT-363
ROHM

Product Information

Minimum DC Current Gain:
120
Transistor Type:
NPN + PNP
Dimensions:
2 x 1.25 x 0.7mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
150 mW
Maximum Collector Emitter Saturation Voltage:
-0.5 (PNP) V, 0.4 (NPN) V
Maximum Collector Base Voltage:
-60 V, 60 V
Maximum Collector Emitter Voltage:
50 V
Maximum Operating Frequency:
100 MHz
Height:
0.7mm
Width:
1.25mm
Length:
2mm
Package Type:
SOT-363 (SC-88)
Number of Elements per Chip:
2
Maximum DC Collector Current:
150 mA
Maximum Emitter Base Voltage:
-6 (PNP) V, 7 (NPN) V
Maximum Operating Temperature:
+150 °C
Pin Count:
6
Transistor Configuration:
Isolated
RoHs Compliant
Checking for live stock

This is Dual NPN + PNP Bipolar Transistor 150 mA 50 V 6-Pin SOT-363 manufactured by ROHM. The manufacturer part number is UMZ2NTR. It features up to 120 of minimum DC current gain. The transistor is a npn + pnp type. The given dimensions of the product include 2 x 1.25 x 0.7mm. The product is available in surface mount configuration. Provides up to 150 mw maximum power dissipation. The product has a maximum -0.5 (pnp) v, 0.4 (npn) v collector emitter saturation voltage . Additionally, it has -60 v, 60 v maximum collector base voltage. Whereas features a 50 v of collector emitter voltage (max). It carries 100 mhz of maximum operating frequency. In addition, the height is 0.7mm. Furthermore, the product is 1.25mm wide. Its accurate length is 2mm. The package is a sort of sot-363 (sc-88). It consists of 2 elements per chip. Moreover, it has a maximum DC collector current of 150 ma. It features a -6 (pnp) v, 7 (npn) v of maximum emitter base voltage. It has a maximum operating temperature of +150 °c. It contains 6 pins. The product offers isolated transistor configuration.
