Dimensions:
6.7 x 3.7 x 1.65mm
Maximum Collector Emitter Saturation Voltage:
0.5 V dc
Width:
3.7mm
Automotive Standard:
AEC-Q101
Transistor Configuration:
Single
Maximum Operating Frequency:
35 MHz

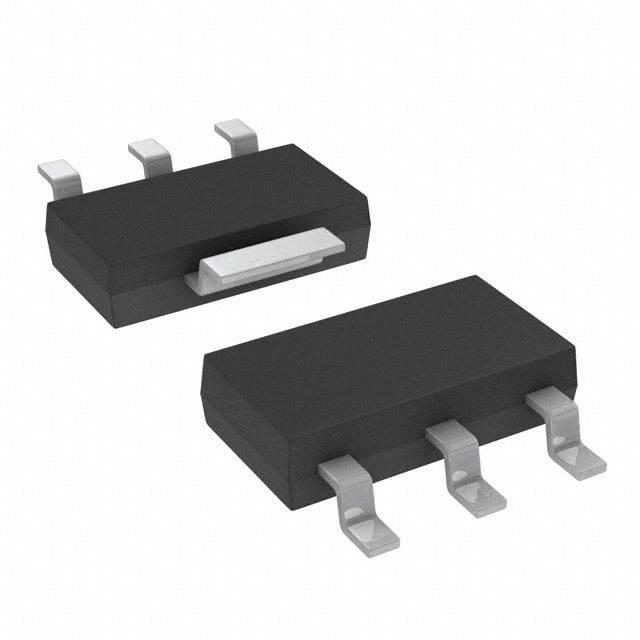

Package Type:
SOT-223
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Transistor Type:
NPN
Maximum Collector Base Voltage:
100 V dc
Maximum Emitter Base Voltage:
5 V
Length:
6.7mm
Maximum DC Collector Current:
1 A
Pin Count:
3+Tab
Minimum DC Current Gain:
40
Mounting Type:
Surface Mount
Maximum Power Dissipation:
1.5 W
Maximum Collector Emitter Voltage:
80 V
Height:
1.65mm
Minimum Operating Temperature:
-65 °C
Manufacturer Standard Lead Time:
34 Weeks
Current - Collector (Ic) (Max):
1A
DC Current Gain (hFE) (Min) @ Ic, Vce:
40 @ 150mA, 2V
Transistor Type:
NPN
Frequency - Transition:
130MHz
Mounting Type:
Surface Mount
Vce Saturation (Max) @ Ib, Ic:
500mV @ 50mA, 500mA
Standard Package:
4,000
Supplier Device Package:
SOT-223-3
Voltage - Collector Emitter Breakdown (Max):
80V
Packaging:
Tape & Reel (TR)
Operating Temperature:
-65°C ~ 150°C (TJ)
Power - Max:
1.5W
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Package / Case:
TO-261-4, TO-261AA
Current - Collector Cutoff (Max):
100nA (ICBO)
Manufacturer:
ON Semiconductor
