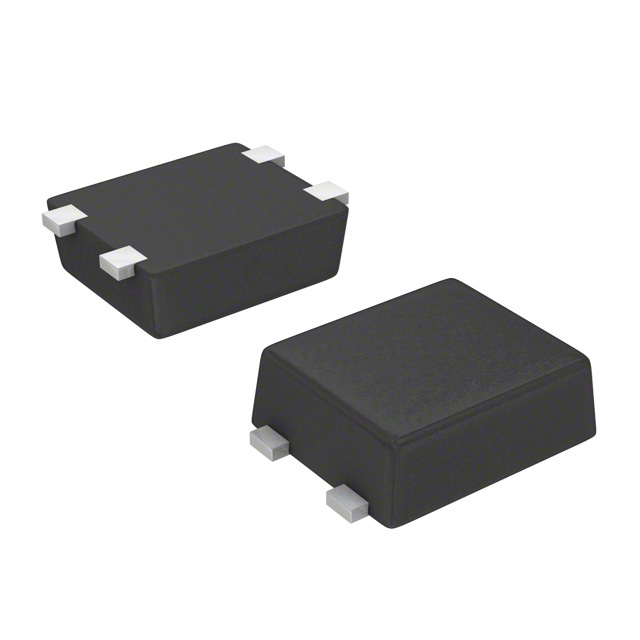

onsemi NSVF4015SG4T1G NPN Transistor, 100 mA, 12 V, 4-Pin SC-82FL

NSVF4015SG4T1G onsemi  NPN Transistor, 100 mA, 12 V, 4-Pin SC-82FL
NSVF4015SG4T1G
onsemi

Product Information

Transistor Type:
NPN
Dimensions:
2 x 1.6 x 0.85mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
450 mW
Maximum Collector Base Voltage:
20 V
Maximum Collector Emitter Voltage:
12 V
Maximum Operating Frequency:
1 GHz
Maximum Emitter Base Voltage:
2 V
Package Type:
SC-82FL
Number of Elements per Chip:
1
Maximum DC Collector Current:
100 mA
Maximum Operating Temperature:
+150 °C
Pin Count:
4
Transistor Configuration:
Single
Current - Collector (Ic) (Max):
100mA
HTSUS:
8541.21.0075
RoHS Status:
ROHS3 Compliant
Voltage - Collector Emitter Breakdown (Max):
12V
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
4-SMD, Flat Leads
DC Current Gain (hFE) (Min) @ Ic, Vce:
60 @ 50mA, 5V
Noise Figure (dB Typ @ f):
1.2dB @ 1GHz
Frequency - Transition:
10GHz
REACH Status:
REACH Unaffected
Gain:
17dB
Manufacturer:
onsemi
Transistor Type:
NPN
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Qualification:
AEC-Q101
standardLeadTime:
10 Weeks
Mounting Type:
Surface Mount
Grade:
Automotive
Series:
-
Supplier Device Package:
SC-82FL/MCPH4
Packaging:
Tape & Reel (TR)
Power - Max:
450mW
Base Product Number:
NSVF4015
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is NPN Transistor 100 mA 12 V 4-Pin SC-82FL manufactured by onsemi. The manufacturer part number is NSVF4015SG4T1G. The transistor is a npn type. The given dimensions of the product include 2 x 1.6 x 0.85mm. The product is available in surface mount configuration. Provides up to 450 mw maximum power dissipation. Additionally, it has 20 v maximum collector base voltage. Whereas features a 12 v of collector emitter voltage (max). It carries 1 ghz of maximum operating frequency. It features a 2 v of maximum emitter base voltage. The package is a sort of sc-82fl. It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of 100 ma. It has a maximum operating temperature of +150 °c. It contains 4 pins. The product offers single transistor configuration. The maximum collector current includes 100ma. It is assigned with possible HTSUS value of 8541.21.0075. The product is rohs3 compliant. The maximum collector emitter breakdown voltage of the product is 12v. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 4-smd, flat leads. Furthermore, 60 @ 50ma, 5v is the minimum DC current gain at given voltage. It has given noise figure of 1.2db @ 1ghz at given frequency. The transition frequency of the product is 10ghz. In addition, it is reach unaffected. The 17db is the gain value of a bespoke product. The onsemi's product offers user-desired applications. Its typical moisture sensitivity level is 1 (unlimited). It has a long 10 weeks standard lead time. The product is automotive, a grade of class. sc-82fl/mcph4 is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. The maximum power of the product is 450mw. Moreover, it corresponds to nsvf4015, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
Datasheet NSVF4015SG4T1G(Technical Reference)
pdf icon
NSVF4015SG4(Datasheets)
pdf icon
onsemi RoHS(Environmental Information)
