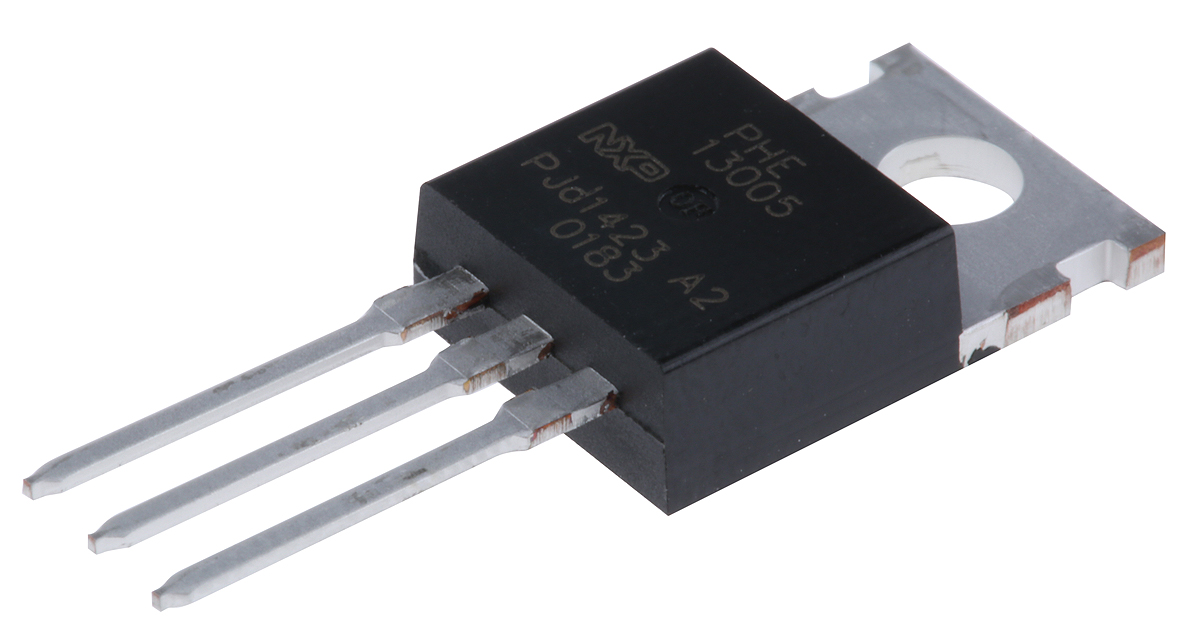

WeEn Semiconductors Co., Ltd PHE13005 NPN Transistor, 4 A, 400 V, 3-Pin TO-220AB

PHE13005-127 WeEn Semiconductors Co., Ltd PHE13005 NPN Transistor, 4 A, 400 V, 3-Pin TO-220AB
PHE13005,127
WeEn Semiconductors Co., Ltd

Product Information

Transistor Type:
NPN
Dimensions:
10.3 x 4.7 x 16mm
Mounting Type:
Through Hole
Maximum Power Dissipation:
75 W
Maximum Collector Base Voltage:
700 V
Maximum Collector Emitter Voltage:
400 V
Maximum Operating Frequency:
60 Hz
Maximum Emitter Base Voltage:
9 V
Package Type:
TO-220AB
Number of Elements per Chip:
1
Maximum DC Collector Current:
4 A
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is PHE13005 NPN Transistor 4 A 400 V 3-Pin TO-220AB manufactured by WeEn Semiconductors Co., Ltd. The manufacturer part number is PHE13005,127. The transistor is a npn type. The given dimensions of the product include 10.3 x 4.7 x 16mm. The product is available in through hole configuration. Provides up to 75 w maximum power dissipation. Additionally, it has 700 v maximum collector base voltage. Whereas features a 400 v of collector emitter voltage (max). It carries 60 hz of maximum operating frequency. It features a 9 v of maximum emitter base voltage. The package is a sort of to-220ab. It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of 4 a. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.

pdf icon
PHE13005 Silicon diffused power transistor datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search PHE13005,127 on website for other similar products.
We accept all major payment methods for all products including ET20490723. Please check your shopping cart at the time of order.
You can order WeEn Semiconductors Co., Ltd brand products with PHE13005,127 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Bipolar Transistors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of WeEn Semiconductors Co., Ltd PHE13005 NPN Transistor, 4 A, 400 V, 3-Pin TO-220AB. You can also check on our website or by contacting our customer support team for further order details on WeEn Semiconductors Co., Ltd PHE13005 NPN Transistor, 4 A, 400 V, 3-Pin TO-220AB.
