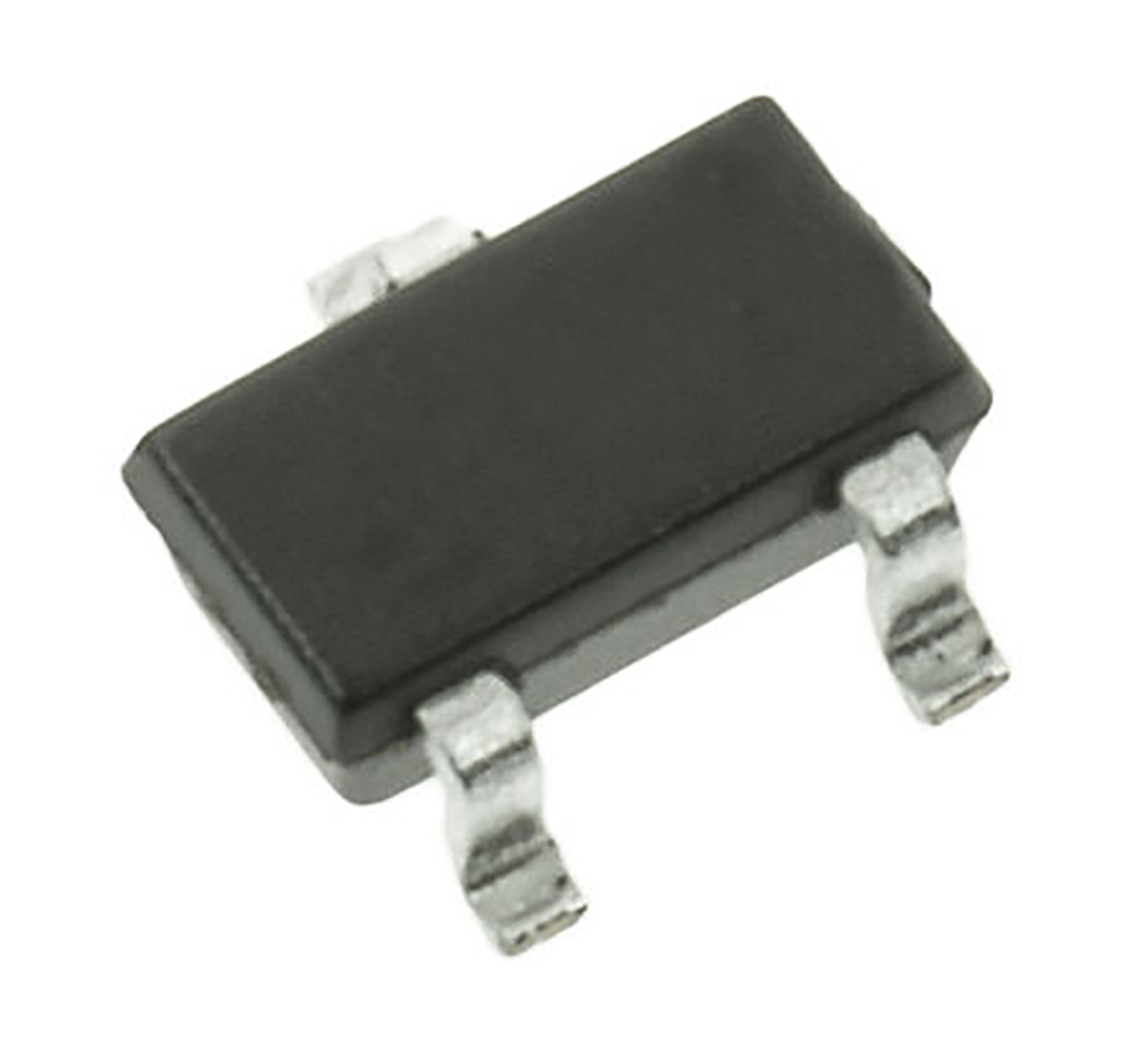

Toshiba 2SC3325-Y(F) NPN Transistor, 500 mA, 50 V, 3-Pin SOT-346

2SC3325-Y-F- Toshiba 2SC3325-Y(F) NPN Transistor, 500 mA, 50 V, 3-Pin SOT-346
2SC3325-Y(F)
2SC3325-Y(F)
Toshiba

Product Information

Minimum DC Current Gain:
70
Transistor Type:
NPN
Dimensions:
1.1 x 2.9 x 1.5mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
200 mW
Maximum Collector Base Voltage:
50 V
Maximum Collector Emitter Voltage:
50 V
Maximum Operating Frequency:
300 MHz
Maximum Emitter Base Voltage:
5 V
Package Type:
SOT-346 (SC-59)
Number of Elements per Chip:
1
Maximum DC Collector Current:
500 mA
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is NPN Transistor 500 mA 50 V 3-Pin SOT-346 manufactured by Toshiba. The manufacturer part number is 2SC3325-Y(F). It features up to 70 of minimum DC current gain. The transistor is a npn type. The given dimensions of the product include 1.1 x 2.9 x 1.5mm. The product is available in surface mount configuration. Provides up to 200 mw maximum power dissipation. Additionally, it has 50 v maximum collector base voltage. Whereas features a 50 v of collector emitter voltage (max). It carries 300 mhz of maximum operating frequency. It features a 5 v of maximum emitter base voltage. The package is a sort of sot-346 (sc-59). It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of 500 ma. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.

pdf icon
2SC3325-Y(F) Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 2SC3325-Y(F) on website for other similar products.
We accept all major payment methods for all products including ET17545971. Please check your shopping cart at the time of order.
You can order Toshiba brand products with 2SC3325-Y(F) directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Bipolar Transistors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Toshiba 2SC3325-Y(F) NPN Transistor, 500 mA, 50 V, 3-Pin SOT-346. You can also check on our website or by contacting our customer support team for further order details on Toshiba 2SC3325-Y(F) NPN Transistor, 500 mA, 50 V, 3-Pin SOT-346.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17545971 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Toshiba" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17545971.
Yes. We ship 2SC3325-Y(F) Internationally to many countries around the world.
