PNP+NPN Driver Transistor

  • Enrgtech Part No: ET16948255
  • |
  • Manufacturer Part No:

    QSZ4TR

  • |
  • Manufacturer: ROHM

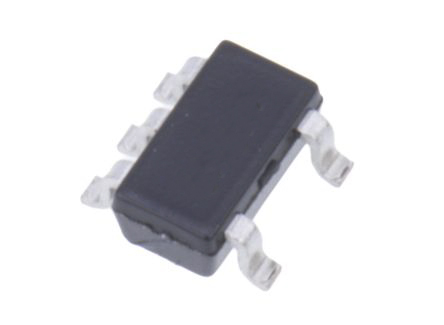

QSZ4TR PNP+NPN Driver Transistor
ROHM

Product Information

Transistor Type:
NPN/PNP
Dimensions:
2.9 x 1.6 x 1mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
1.25 W
Maximum Collector Base Voltage:
30) V
Maximum Collector Emitter Voltage:
30 V
Maximum Operating Frequency:
100 MHz
Maximum Emitter Base Voltage:
6 V
Package Type:
SOT-25
Number of Elements per Chip:
2
Maximum DC Collector Current:
2 A
Maximum Operating Temperature:
+150 °C
Pin Count:
5
Transistor Configuration:
Isolated
Checking for live stock

This is PNP+NPN Driver Transistor manufactured by ROHM. The manufacturer part number is QSZ4TR. The transistor is a npn/pnp type. The given dimensions of the product include 2.9 x 1.6 x 1mm. The product is available in surface mount configuration. Provides up to 1.25 w maximum power dissipation. Additionally, it has 30) v maximum collector base voltage. Whereas features a 30 v of collector emitter voltage (max). It carries 100 mhz of maximum operating frequency. It features a 6 v of maximum emitter base voltage. The package is a sort of sot-25. It consists of 2 elements per chip. Moreover, it has a maximum DC collector current of 2 a. It has a maximum operating temperature of +150 °c. It contains 5 pins. The product offers isolated transistor configuration.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search QSZ4TR on website for other similar products.
We accept all major payment methods for all products including ET16948255. Please check your shopping cart at the time of order.
You can order ROHM brand products with QSZ4TR directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Bipolar Transistors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of PNP+NPN Driver Transistor. You can also check on our website or by contacting our customer support team for further order details on PNP+NPN Driver Transistor.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16948255 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "ROHM" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16948255.
Yes. We ship QSZ4TR Internationally to many countries around the world.
