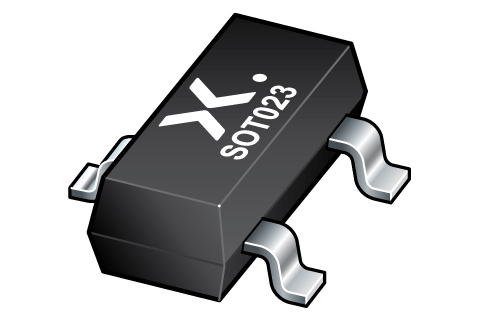

Nexperia, PDTC114ET,235 NPN Resistor-equipped Transistor, 100 mA 50 V 10 kΩ, Ratio Of 1, 3-Pin SOT-23

Enrgtech Part No: ET16912125
|
Manufacturer Part No:
PDTC114ET,235
|
Manufacturer: Nexperia

PDTC114ET-235 Nexperia, PDTC114ET,235 NPN Resistor-equipped Transistor, 100 mA 50 V 10 kΩ, Ratio Of 1, 3-Pin SOT-23

Product Information

Transistor Type:

NPN

Dimensions:

3 x 1.4 x 1mm

Mounting Type:

Surface Mount

Maximum Power Dissipation:

250 mW

Maximum Collector Emitter Voltage:

50 V

Maximum Emitter Base Voltage:

10 V

Package Type:

TO-236

Number of Elements per Chip:

Maximum DC Collector Current:

100 mA

Typical Resistor Ratio:

Transistor Configuration:

Single

Maximum Operating Temperature:

+150 °C

Checking for live stock

This is NPN Resistor-equipped Transistor 100 mA 50 V 10 kΩ Ratio Of 1 3-Pin SOT-23 manufactured by Nexperia. The manufacturer part number is PDTC114ET,235. The transistor is a npn type. The given dimensions of the product include 3 x 1.4 x 1mm. The product is available in surface mount configuration. Provides up to 250 mw maximum power dissipation. Whereas features a 50 v of collector emitter voltage (max). It features a 10 v of maximum emitter base voltage. The package is a sort of to-236. It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of 100 ma. In addition, it has a typical 1 resistor ratio . The product offers single transistor configuration. It has a maximum operating temperature of +150 °c. It contains 3 pins. Whereas, it has a typical 10 kω input resistor .
