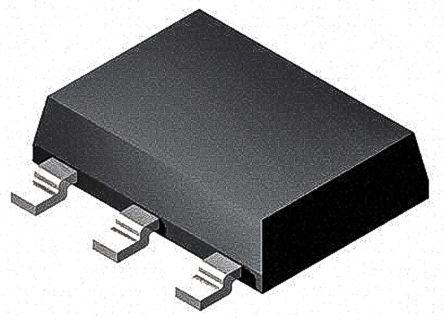

Nexperia BCP52,135 PNP Transistor, 1 A, -60 V SOT-223

BCP52-135 Nexperia BCP52,135 PNP Transistor, 1 A, -60 V SOT-223
Nexperia

Product Information

Transistor Type:
PNP
Dimensions:
6.7 x 3.7 x 1.7mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
1.35 W
Maximum Collector Base Voltage:
-60 V
Maximum Collector Emitter Voltage:
-60 V
Maximum Operating Frequency:
145 MHz
Maximum Emitter Base Voltage:
-5 V
Package Type:
SOT-223
Number of Elements per Chip:
1
Maximum DC Collector Current:
1 A
Maximum Operating Temperature:
+150 °C
Pin Count:
4
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is PNP Transistor 1 A -60 V SOT-223 manufactured by Nexperia. The manufacturer part number is BCP52,135. The transistor is a pnp type. The given dimensions of the product include 6.7 x 3.7 x 1.7mm. The product is available in surface mount configuration. Provides up to 1.35 w maximum power dissipation. Additionally, it has -60 v maximum collector base voltage. Whereas features a -60 v of collector emitter voltage (max). It carries 145 mhz of maximum operating frequency. It features a -5 v of maximum emitter base voltage. The package is a sort of sot-223. It consists of 1 elements per chip. Moreover, it has a maximum DC collector current of 1 a. It has a maximum operating temperature of +150 °c. It contains 4 pins. The product offers single transistor configuration.
