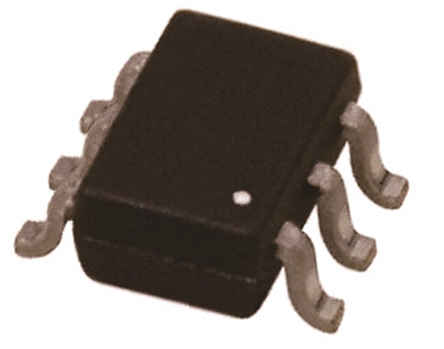

Nexperia PBLS2001D,115 Dual NPN + PNP Transistor, 1 A, 20 V, 6-Pin SOT-457 (SC-74)

Enrgtech Part No: ET16849167
|
Manufacturer Part No:
PBLS2001D,115
|
Manufacturer: Nexperia

PBLS2001D-115 Nexperia PBLS2001D,115 Dual NPN + PNP Transistor, 1 A, 20 V, 6-Pin SOT-457 (SC-74)

Product Information

Transistor Type:

NPN + PNP

Dimensions:

3.1 x 1.7 x 1.1mm

Mounting Type:

Surface Mount

Maximum Power Dissipation:

600 mW

Maximum Collector Base Voltage:

-20 V

Maximum Collector Emitter Voltage:

20 V

Maximum Operating Frequency:

100 MHz

Maximum Emitter Base Voltage:

-5 V

Package Type:

SOT-457 (SC-74)

Number of Elements per Chip:

Maximum DC Collector Current:

1 A

Maximum Operating Temperature:

+150 °C

Checking for live stock

This is Dual NPN + PNP Transistor 1 A 20 V 6-Pin SOT-457 (SC-74) manufactured by Nexperia. The manufacturer part number is PBLS2001D,115. The transistor is a npn + pnp type. The given dimensions of the product include 3.1 x 1.7 x 1.1mm. The product is available in surface mount configuration. Provides up to 600 mw maximum power dissipation. Additionally, it has -20 v maximum collector base voltage. Whereas features a 20 v of collector emitter voltage (max). It carries 100 mhz of maximum operating frequency. It features a -5 v of maximum emitter base voltage. The package is a sort of sot-457 (sc-74). It consists of 2 elements per chip. Moreover, it has a maximum DC collector current of 1 a. It has a maximum operating temperature of +150 °c. It contains 6 pins. The product offers n+p loadswitch transistor configuration.

Datasheet(Technical Reference)

PBLS2001D PNP BISS Loadswitch Data Sheet(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)
