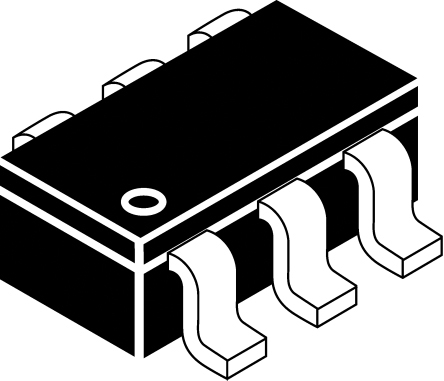

Infineon SMBT3904UPNE6327HTSA1 Dual NPN + PNP Transistor, 200 mA, 40 V, 6-Pin SC-74

SMBT3904UPNE6327HTSA1 Infineon  Dual NPN + PNP Transistor, 200 mA, 40 V, 6-Pin SC-74
Infineon

Product Information

Transistor Type:
NPN + PNP
Dimensions:
2.9 x 1.6 x 1mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
330 mW
Maximum Collector Base Voltage:
40 V
Maximum Collector Emitter Voltage:
40 V
Maximum Operating Frequency:
250 MHz
Maximum Emitter Base Voltage:
6 V
Package Type:
SC-74
Number of Elements per Chip:
2
Maximum DC Collector Current:
200 mA
Maximum Operating Temperature:
+150 °C
Pin Count:
6
Transistor Configuration:
Isolated
RoHs Compliant
Checking for live stock

This is Dual NPN + PNP Transistor 200 mA 40 V 6-Pin SC-74 manufactured by Infineon. The manufacturer part number is SMBT3904UPNE6327HTSA1. The transistor is a npn + pnp type. The given dimensions of the product include 2.9 x 1.6 x 1mm. The product is available in surface mount configuration. Provides up to 330 mw maximum power dissipation. Additionally, it has 40 v maximum collector base voltage. Whereas features a 40 v of collector emitter voltage (max). It carries 250 mhz of maximum operating frequency. It features a 6 v of maximum emitter base voltage. The package is a sort of sc-74. It consists of 2 elements per chip. Moreover, it has a maximum DC collector current of 200 ma. It has a maximum operating temperature of +150 °c. It contains 6 pins. The product offers isolated transistor configuration.
