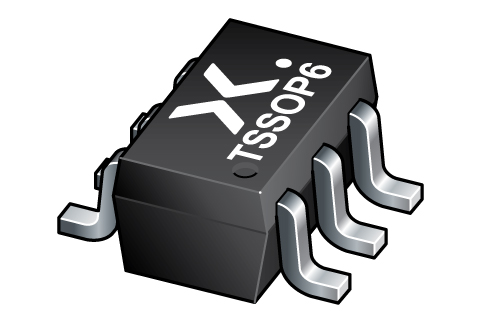

Nexperia, PUMD13,135, Dual NPN + PNP Resistor-equipped Transistor, 100 mA 50 V 4.7 kΩ, Ratio Of 10, 6-Pin SOT-363

Enrgtech Part No: ET16830406
|
Manufacturer Part No:
PUMD13,135
|
Manufacturer: Nexperia

PUMD13-135 Nexperia, PUMD13,135, Dual NPN + PNP Resistor-equipped Transistor, 100 mA 50 V 4.7 kΩ, Ratio Of 10, 6-Pin SOT-363

Product Information

Transistor Type:

NPN/PNP

Dimensions:

2.2 x 1.35 x 1mm

Mounting Type:

Surface Mount

Maximum Power Dissipation:

300 mW

Maximum Collector Emitter Voltage:

50 V

Maximum Emitter Base Voltage:

5 V

Package Type:

SOT-363

Number of Elements per Chip:

Maximum DC Collector Current:

100 mA

Typical Resistor Ratio:

Transistor Configuration:

Dual Base

Maximum Operating Temperature:

+150 °C

Checking for live stock

This is Dual NPN + PNP Resistor-equipped Transistor 100 mA 50 V 4.7 kΩ Ratio Of 10 6-Pin SOT-363 manufactured by Nexperia. The manufacturer part number is PUMD13,135. The transistor is a npn/pnp type. The given dimensions of the product include 2.2 x 1.35 x 1mm. The product is available in surface mount configuration. Provides up to 300 mw maximum power dissipation. Whereas features a 50 v of collector emitter voltage (max). It features a 5 v of maximum emitter base voltage. The package is a sort of sot-363. It consists of 2 elements per chip. Moreover, it has a maximum DC collector current of 100 ma. In addition, it has a typical 10 resistor ratio . The product offers dual base transistor configuration. It has a maximum operating temperature of +150 °c. It contains 6 pins. Whereas, it has a typical 4.7 kω input resistor .

Datasheet(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search PUMD13,135 on website for other similar products.

We accept all major payment methods for all products including ET16830406. Please check your shopping cart at the time of order.

You can order Nexperia brand products with PUMD13,135 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Bipolar Transistors category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Nexperia, PUMD13,135, Dual NPN + PNP Resistor-equipped Transistor, 100 mA 50 V 4.7 kΩ, Ratio Of 10, 6-Pin SOT-363. You can also check on our website or by contacting our customer support team for further order details on Nexperia, PUMD13,135, Dual NPN + PNP Resistor-equipped Transistor, 100 mA 50 V 4.7 kΩ, Ratio Of 10, 6-Pin SOT-363.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET16830406 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16830406.

Yes. We ship PUMD13,135 Internationally to many countries around the world.
