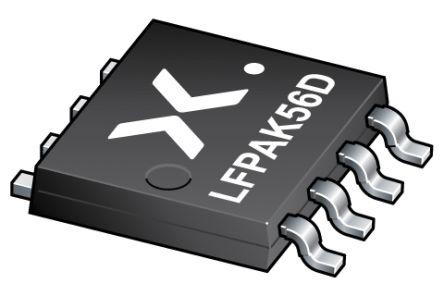

Nexperia PHPT610035NKX Dual NPN Transistor, 3 A, 100 V, 8-Pin LFPAK56D, SOT1205

Enrgtech Part No: ET16827097
|
Manufacturer Part No:
PHPT610035NKX
|
Manufacturer: Nexperia

PHPT610035NKX Nexperia Dual NPN Transistor, 3 A, 100 V, 8-Pin LFPAK56D, SOT1205

Product Information

Transistor Type:

NPN

Dimensions:

5.3 x 4.7 x 1.05mm

Mounting Type:

Surface Mount

Maximum Power Dissipation:

25 W

Maximum Collector Emitter Voltage:

100 V

Maximum Operating Frequency:

140 MHz

Maximum Emitter Base Voltage:

7 V

Package Type:

LFPAK56D, SOT1205

Number of Elements per Chip:

Maximum DC Collector Current:

3 A

Maximum Collector Base Voltage:

100 V

Pin Count:

Checking for live stock

This is Dual NPN Transistor 3 A 100 V 8-Pin LFPAK56D SOT1205 manufactured by Nexperia. The manufacturer part number is PHPT610035NKX. The transistor is a npn type. The given dimensions of the product include 5.3 x 4.7 x 1.05mm. The product is available in surface mount configuration. Provides up to 25 w maximum power dissipation. Whereas features a 100 v of collector emitter voltage (max). It carries 140 mhz of maximum operating frequency. It features a 7 v of maximum emitter base voltage. The package is a sort of lfpak56d, sot1205. It consists of 2 elements per chip. Moreover, it has a maximum DC collector current of 3 a. Additionally, it has 100 v maximum collector base voltage. It contains 8 pins. The product offers common base, common collector, common emitter transistor configuration.
