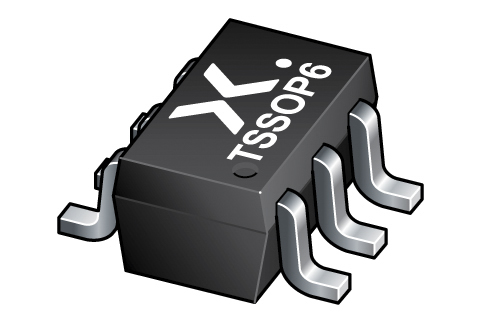

Nexperia, PUMD18,115, Dual NPN + PNP Resistor-equipped Transistor, 100 mA 50 V 4.7 kΩ, Ratio Of 2.1, 6-Pin SOT

PUMD18-115 Nexperia, PUMD18,115, Dual NPN + PNP Resistor-equipped Transistor, 100 mA 50 V 4.7 kΩ, Ratio Of 2.1, 6-Pin SOT
Nexperia

Product Information

Base-Emitter Resistor:
10kΩ
Transistor Type:
NPN/PNP
Dimensions:
2.2 x 1.35 x 1.1mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
300 mW
Maximum Collector Emitter Voltage:
50 V
Package Type:
SOT-363
Number of Elements per Chip:
2
Maximum DC Collector Current:
100 mA
Typical Resistor Ratio:
2.1
Transistor Configuration:
Dual
Maximum Operating Temperature:
+150 °C
Pin Count:
6
Typical Input Resistor:
4.7 kΩ
RoHs Compliant
Checking for live stock

This is Dual NPN + PNP Resistor-equipped Transistor 100 mA 50 V 4.7 kΩ Ratio Of 2.1 6-Pin SOT manufactured by Nexperia. The manufacturer part number is PUMD18,115. It has about 10kω base-emitter resistor . The transistor is a npn/pnp type. The given dimensions of the product include 2.2 x 1.35 x 1.1mm. The product is available in surface mount configuration. Provides up to 300 mw maximum power dissipation. Whereas features a 50 v of collector emitter voltage (max). The package is a sort of sot-363. It consists of 2 elements per chip. Moreover, it has a maximum DC collector current of 100 ma. In addition, it has a typical 2.1 resistor ratio . The product offers dual transistor configuration. It has a maximum operating temperature of +150 °c. It contains 6 pins. Whereas, it has a typical 4.7 kω input resistor .

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search PUMD18,115 on website for other similar products.
We accept all major payment methods for all products including ET16800692. Please check your shopping cart at the time of order.
You can order Nexperia brand products with PUMD18,115 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Bipolar Transistors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nexperia, PUMD18,115, Dual NPN + PNP Resistor-equipped Transistor, 100 mA 50 V 4.7 kΩ, Ratio Of 2.1, 6-Pin SOT. You can also check on our website or by contacting our customer support team for further order details on Nexperia, PUMD18,115, Dual NPN + PNP Resistor-equipped Transistor, 100 mA 50 V 4.7 kΩ, Ratio Of 2.1, 6-Pin SOT.
